Control Unit

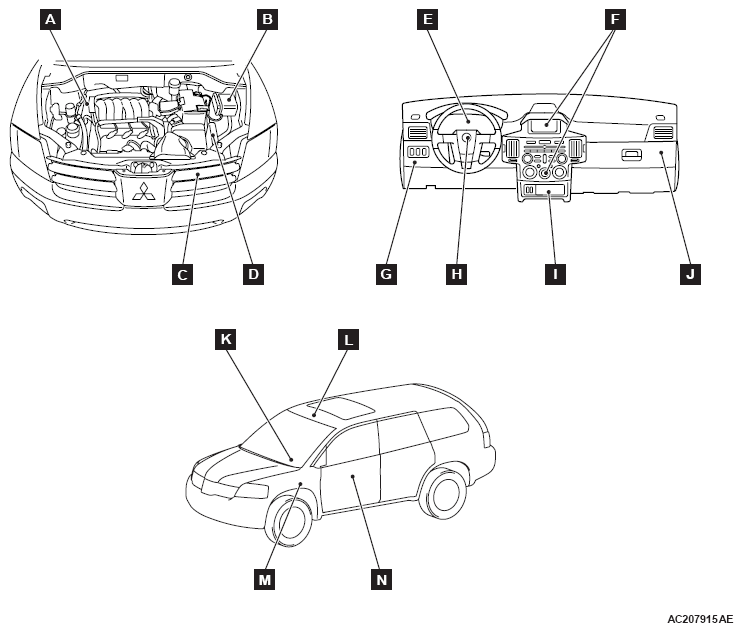

CONTROL UNIT COMPONENTS REFERENCE CHART
| NAME | SYMBOL |
|---|---|

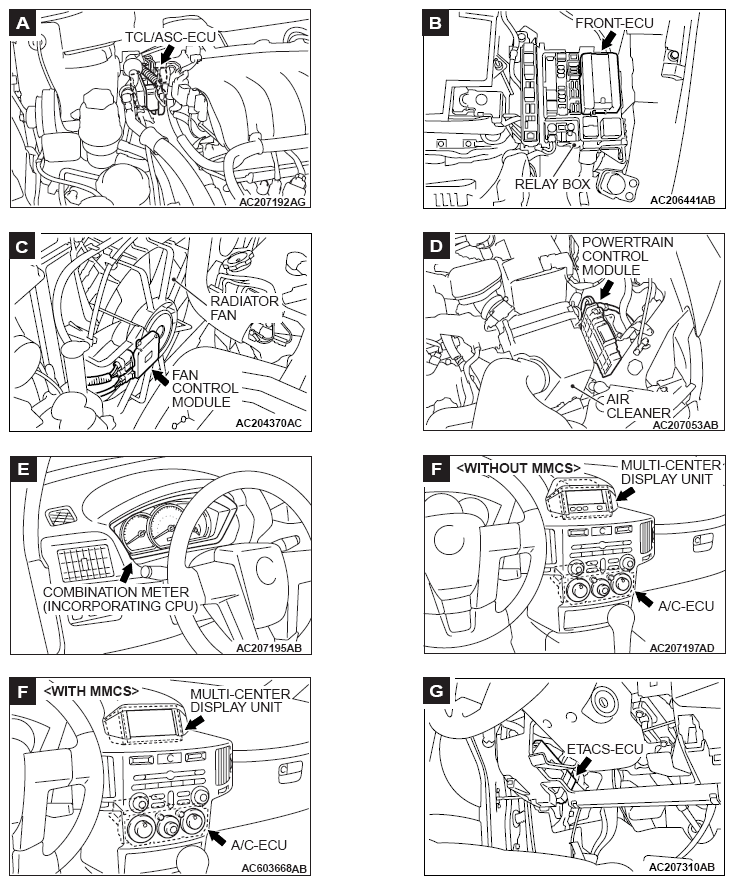

| TCL/ASC-ECU | A |
| A/C-ECU | F |

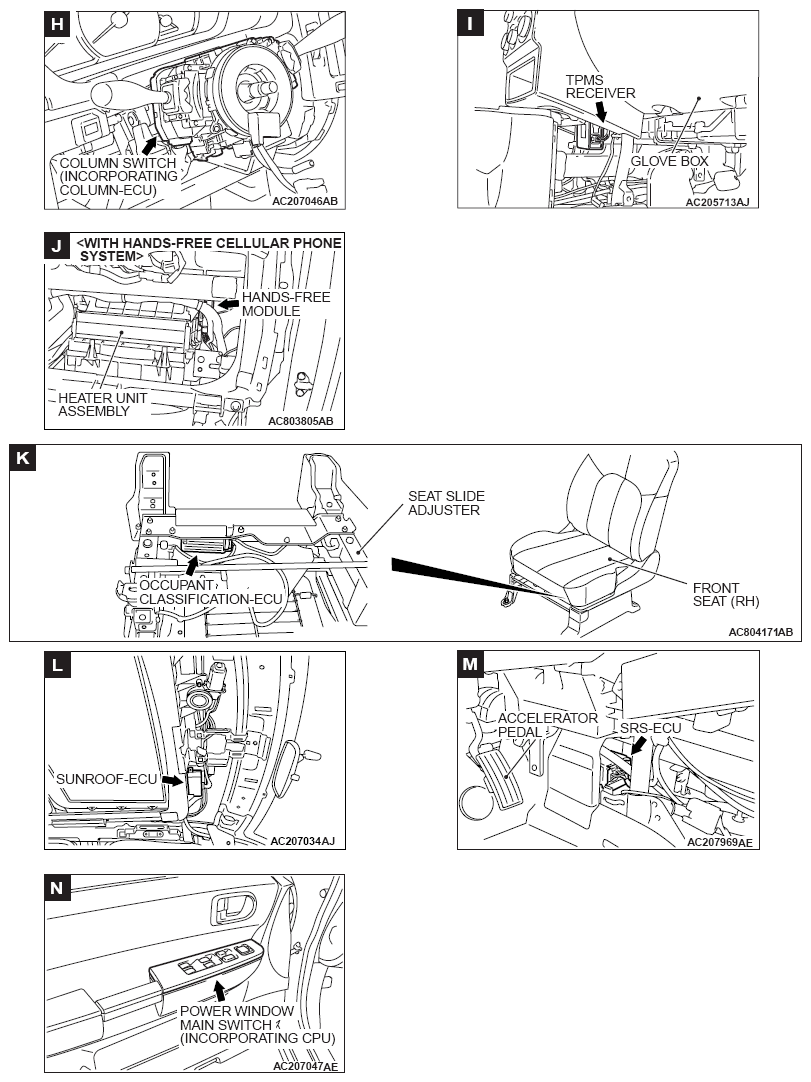

| Column switch (incorporating column-ECU) | H |
| Combination meter (incorporating CPU) | E |
| ETACS-ECU | G |
| Fan control module | C |
| Front-ECU | B |
| Hands-free module <with hands-free cellular phone system> | J |
| Multi-center display unit | F |
| Occupant classification-ECU | K |
| Power window main switch (incorporating CPU) | N |
| Powertrain control module | D |
| SRS-ECU | M |
| Sunroof-ECU | L |
| TPMS receiver | I |
