Mitsubishi
>>
2011
>>
Endeavor SE, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Generator Assembly
>>
Disassembly And Assembly
>>
Notes
Disassembly And Assembly: Notes

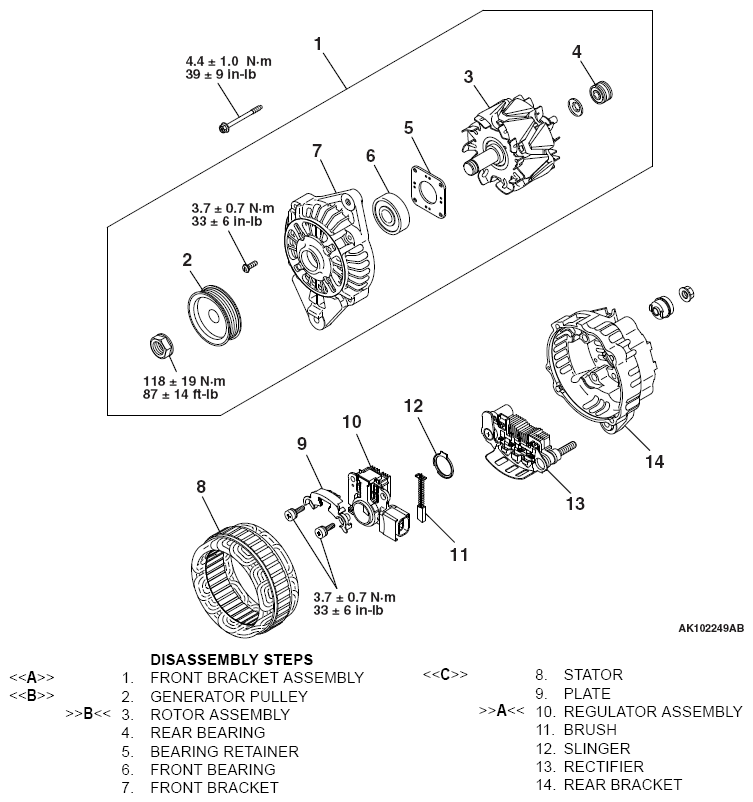

Fig 1: Generator Assembly Disassembly And Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
