Home >> Mitsubishi >> 2011 >> Endeavor SE, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass >> Delta Window Glass >> Removal And Installation >> Notes

Removal And Installation: Notes

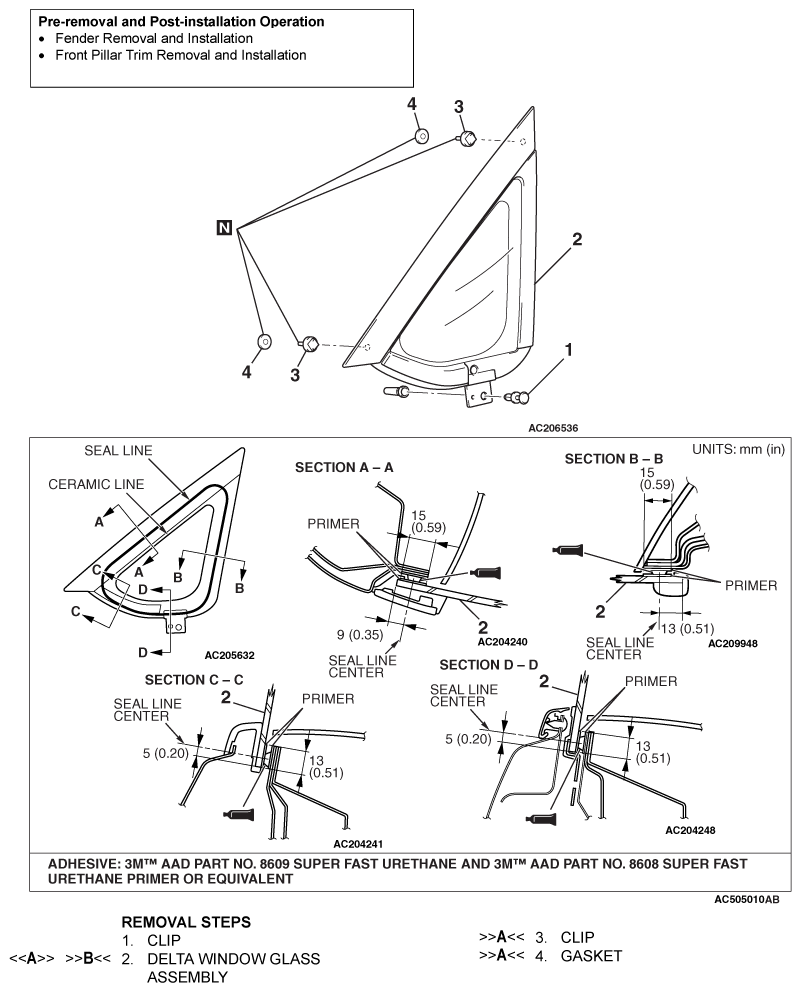

Fig 1: Delta Window Glass Removal And Installation

G06700065

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB990528: Spatula, stripe tape
