Key Reminder Switch Check

Disconnect key reminder switch connector C-312 without removing the key reminder switch and steering lock cylinder.



Check for continuity between terminal 4 and terminal 6.

KEY REMINDER SWITCH REFERENCE CHART

STATUS OF IGNITION KEY TESTER CONNECTION SPECIFIED CONDITION
Removed 4-6 Less than 2 ohms
Inserted 4-6 Open circuit

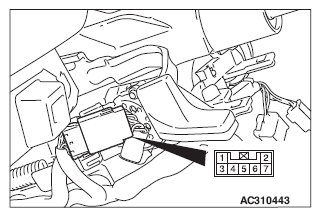

Fig 1: Key Reminder Switch Connector C-312
G06700424Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
