Traction Control/Active Stability Control System
>>
Hydraulic Unit
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

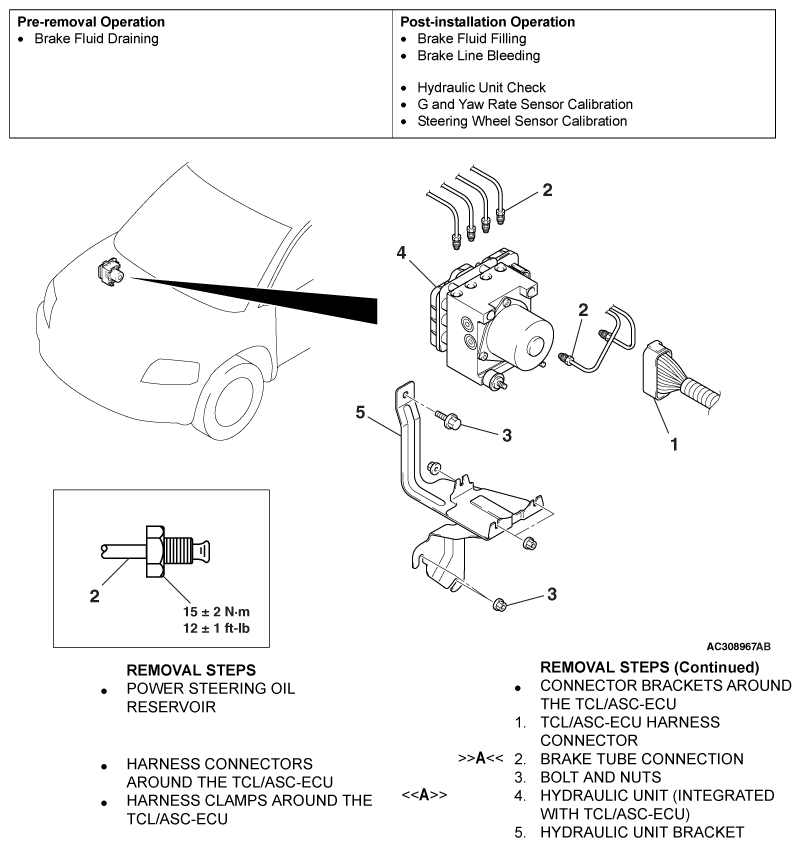

Fig 1: Removal/Installation Of Hydraulic Unit Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
