Removal And Installation

CAUTION:
  • Do not drop or shock the G and yaw rate sensor.
  • Always carry out calibration if steering angle is adjusted (Refer to G AND YAW RATE SENSOR CALIBRATION  ). This is necessary because the TCL/ASC-ECU should update the G and yaw rate sensor neutral point.

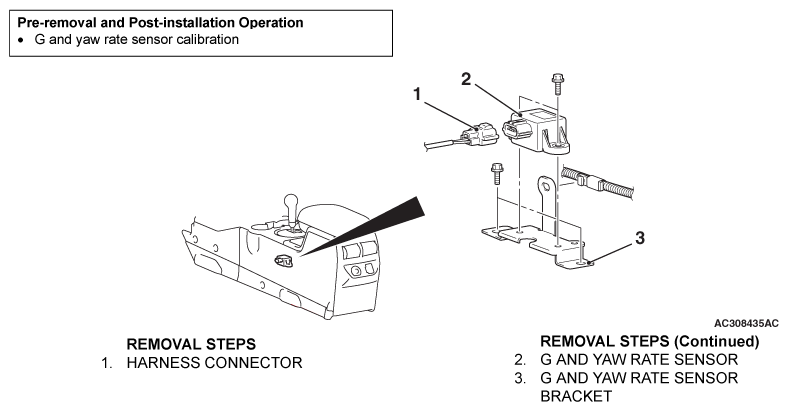

    Fig 1: Removal/Installation Of G And Yaw Rate Sensor Components
    G06696558Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
