Mitsubishi
>>
2011
>>
Endeavor LS, AWD
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Front Suspension
>>
Strut Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

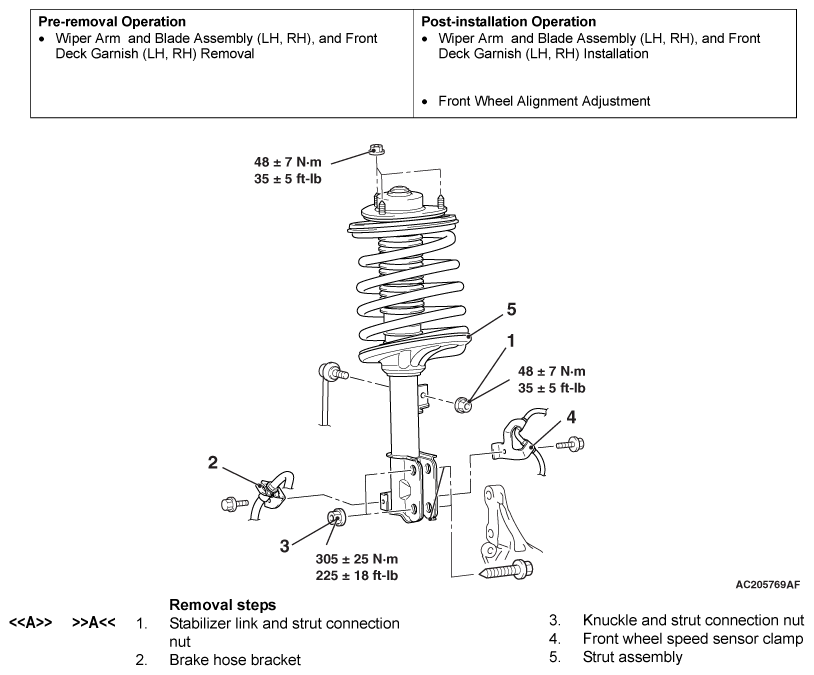

Fig 1: Disassembly/Assembly Of Strut Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
