Removal And Installation
>>
Notes
Removal And Installation: Notes

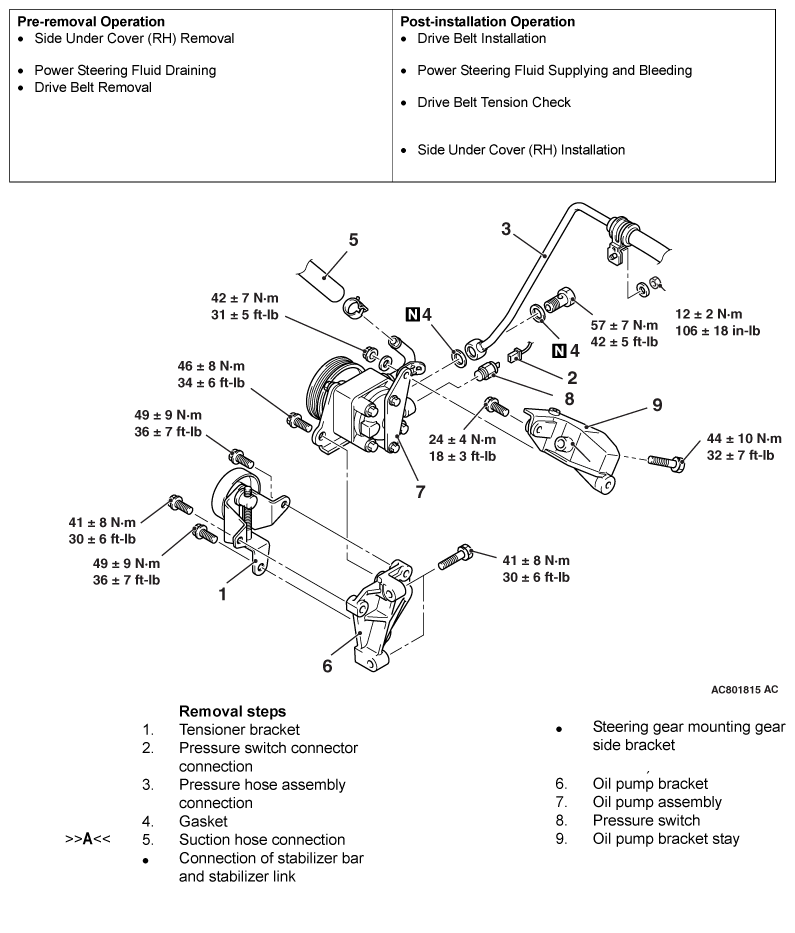

Fig 1: Power Steering Oil Pump Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
