Removal And Installation: Notes

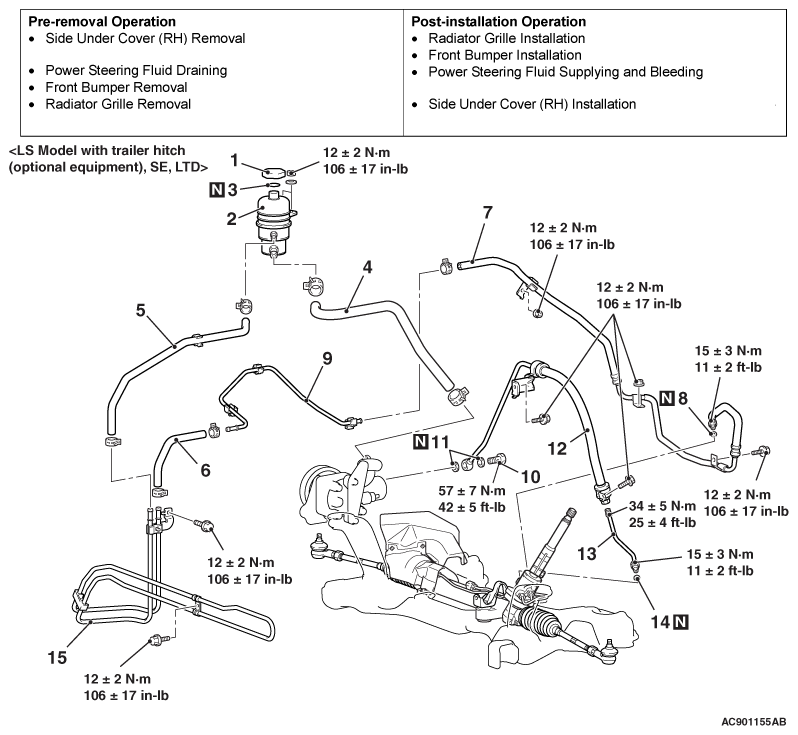

Fig 1: Power Steering Hoses With Torque Specifications (1 Of 2)
G06700035Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

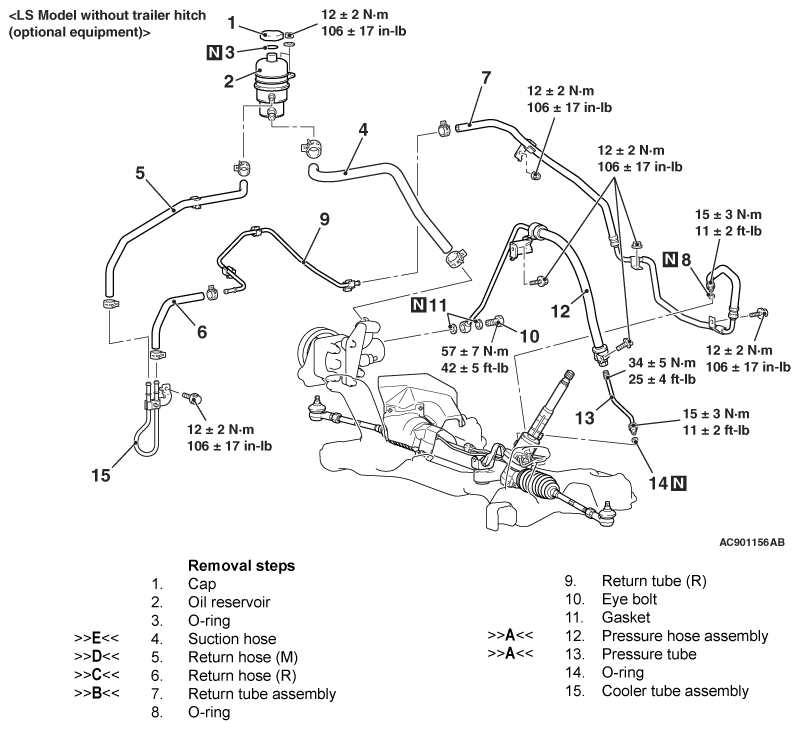

Fig 2: Power Steering Hoses With Torque Specifications (2 Of 2)
G06700036Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
