Removal And Installation: Notes

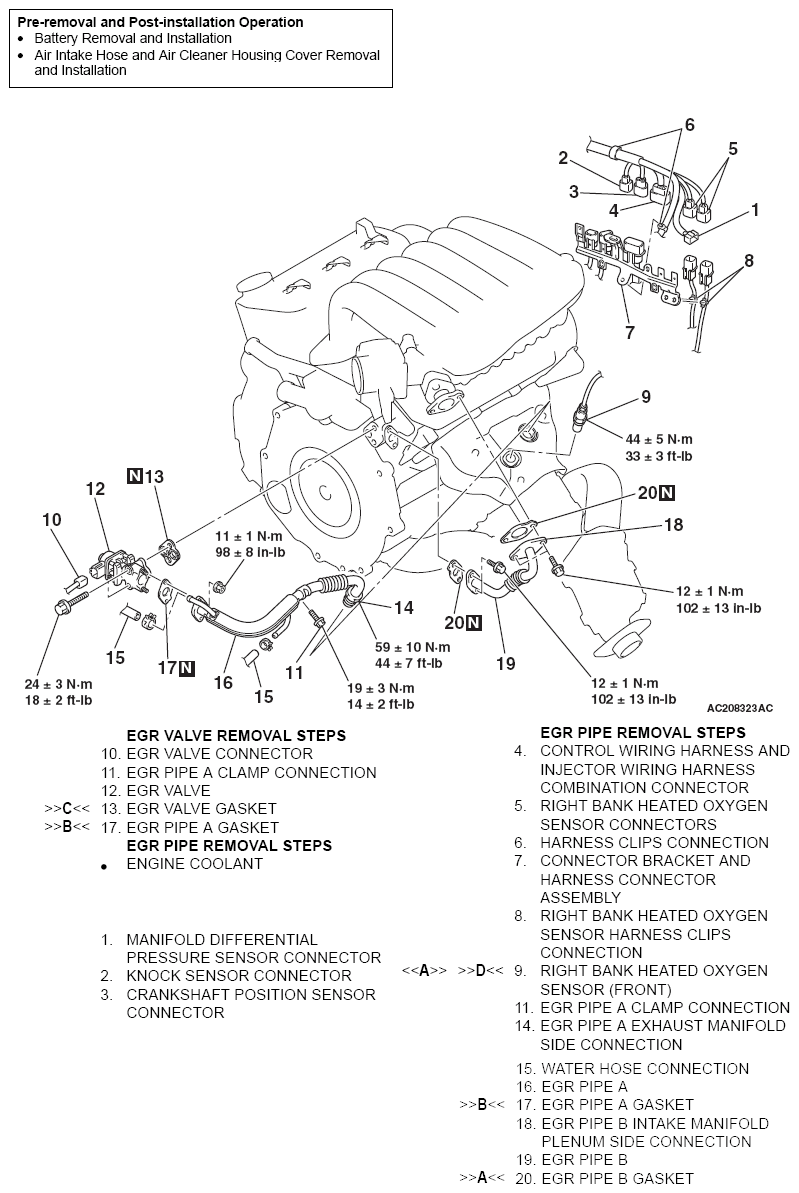

Fig 1: Removal/Installation Of Engine And Emission Control Emission Control Components With Torque Specifications
G06699418Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
