INSPECTION PROCEDURE 4: Steering wheel sensor power supply supply system: Notes

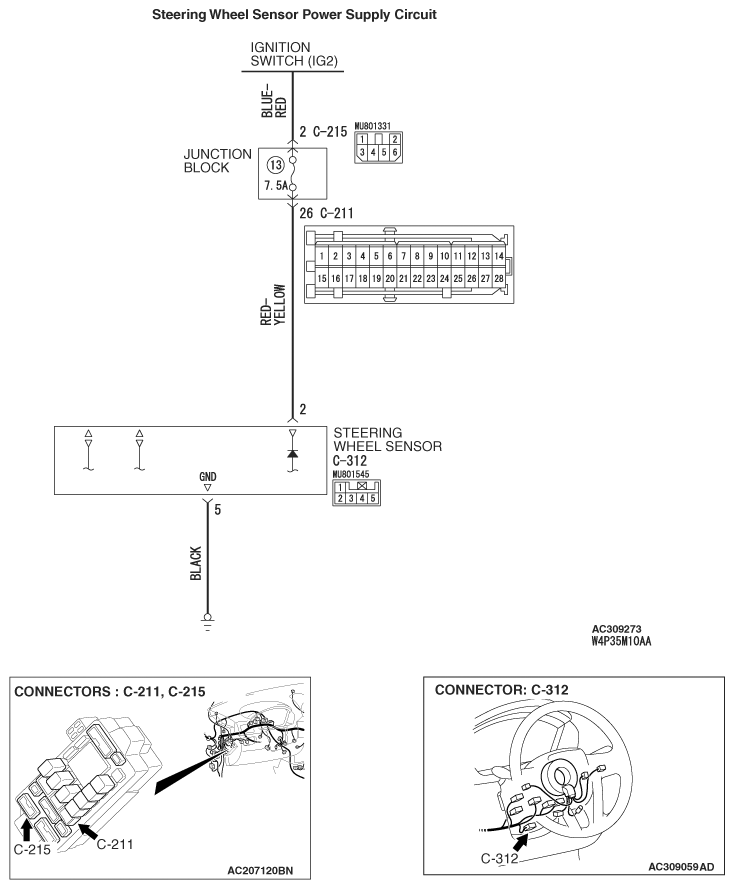

Fig 1: Steering Wheel Sensor Power Supply Circuit Diagram

G06696521

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
