INSPECTION PROCEDURE 2: Communication between Scan Tool and the steering wheel sensor is not possible: Notes

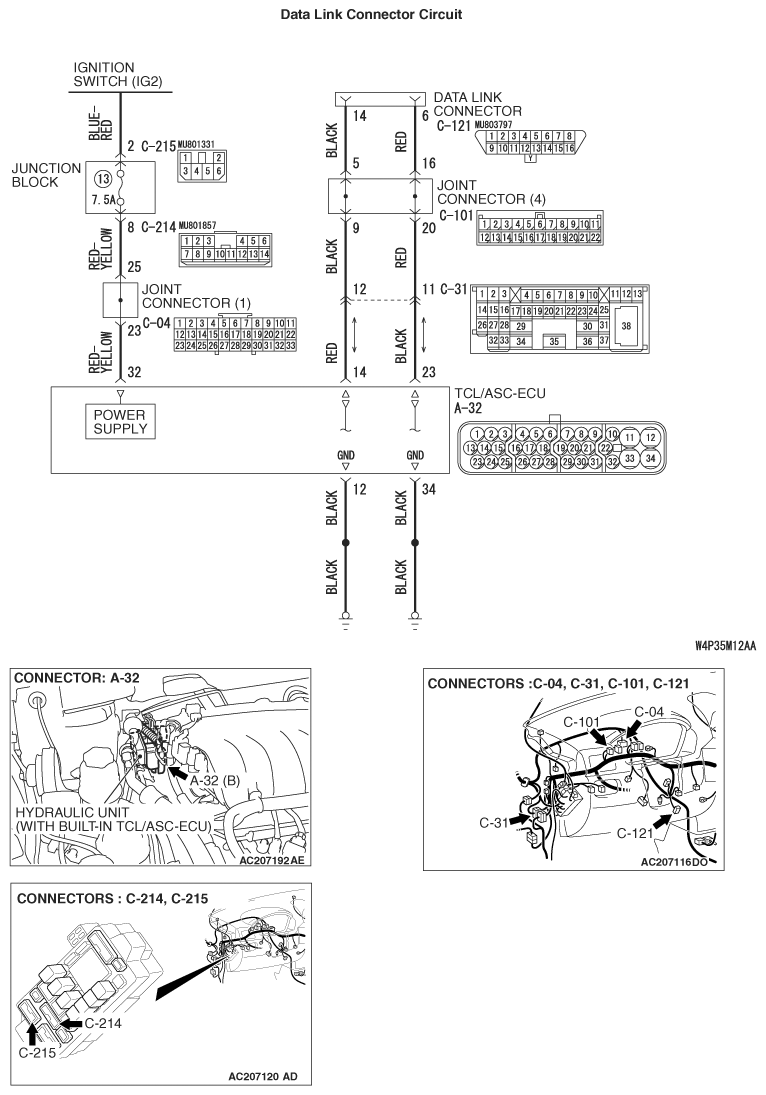

Fig 1: Data Link Connector Circuit Diagram

G06696509

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
