DTC P1767 (P0720): Output Shaft Speed Sensor System (Short Circuit/Open Circuit): Notes

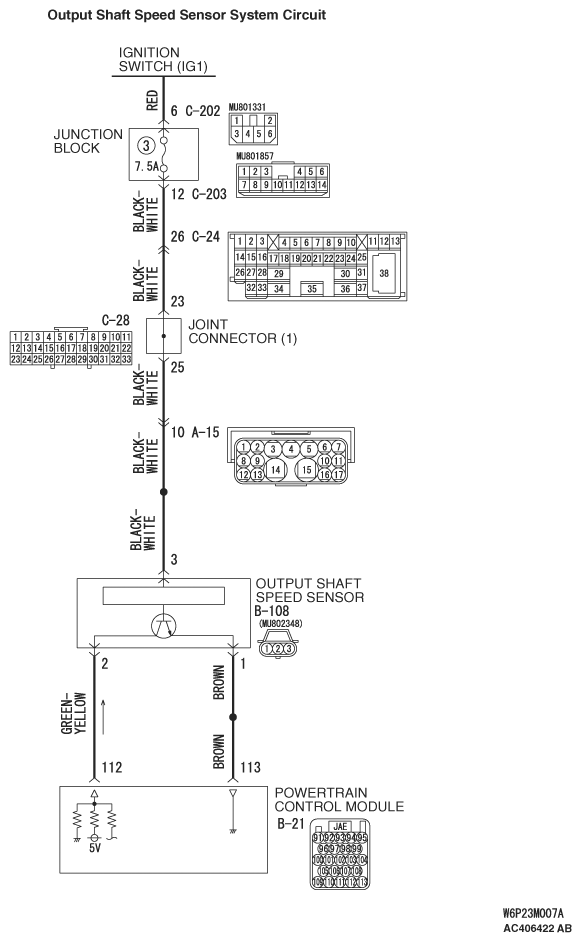

Fig 1: Output Shaft Speed Sensor System Circuit Diagram (1 Of 20
G06685070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

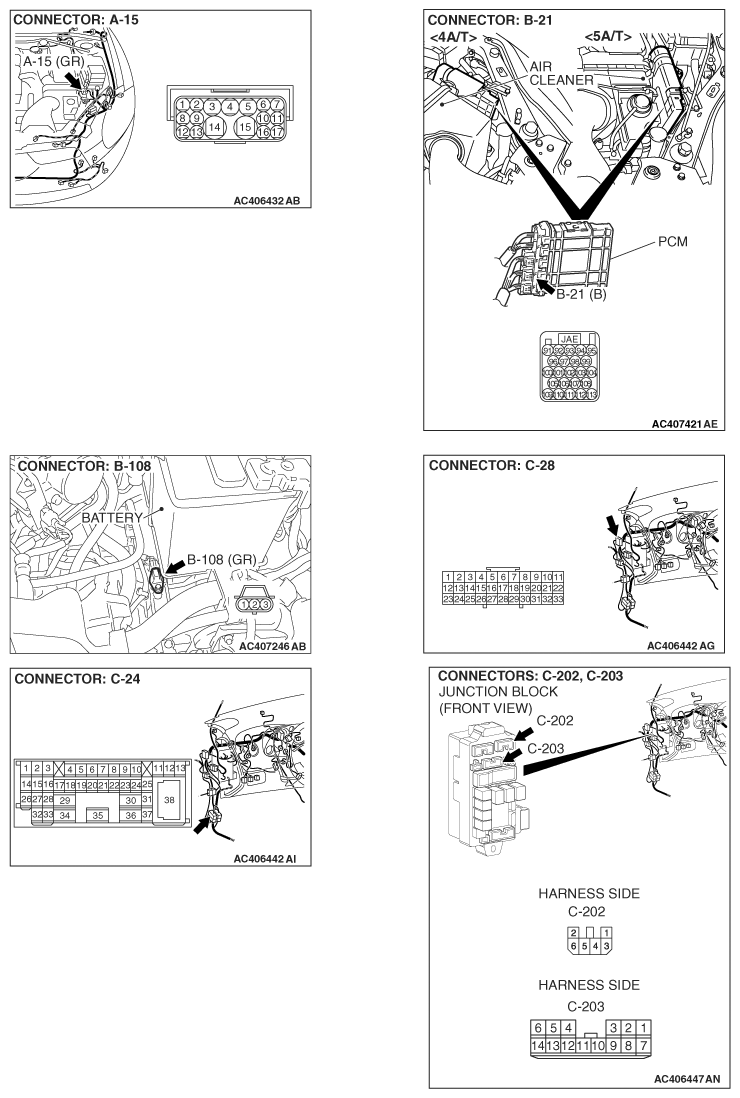

Fig 2: Output Shaft Speed Sensor System Circuit Diagram (2 Of 2)
G06685071Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
