Home >> Mitsubishi >> 2011 >> Eclipse GT >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Ignition System >> Crankshaft Position Sensor >> Removal And Installation <3.8L Engine> >> Notes

Removal And Installation <3.8L Engine>: Notes

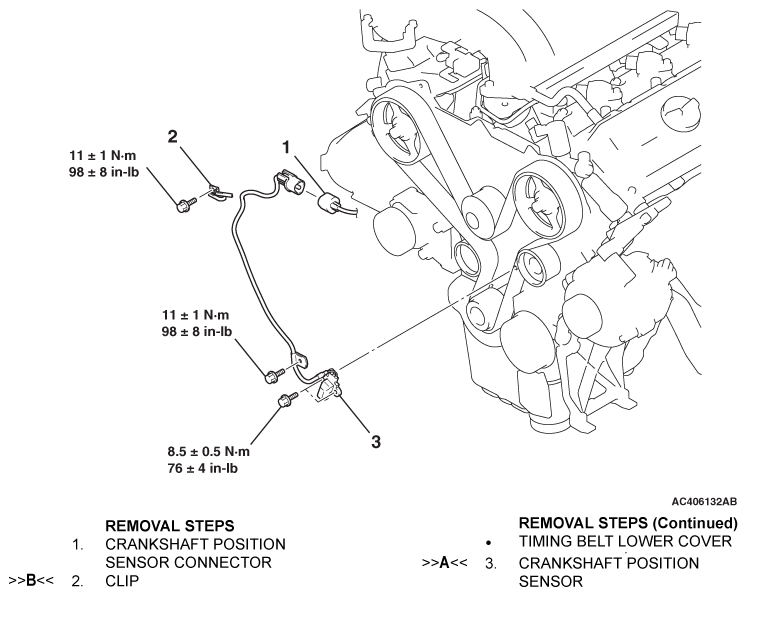

Fig 1: Removal/Installation Of Crankshaft Position Sensor With Torque Specifications (3.8L Engine)
G06692027Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
