Notes
Removal And Installation <2.4L Engine>: Notes

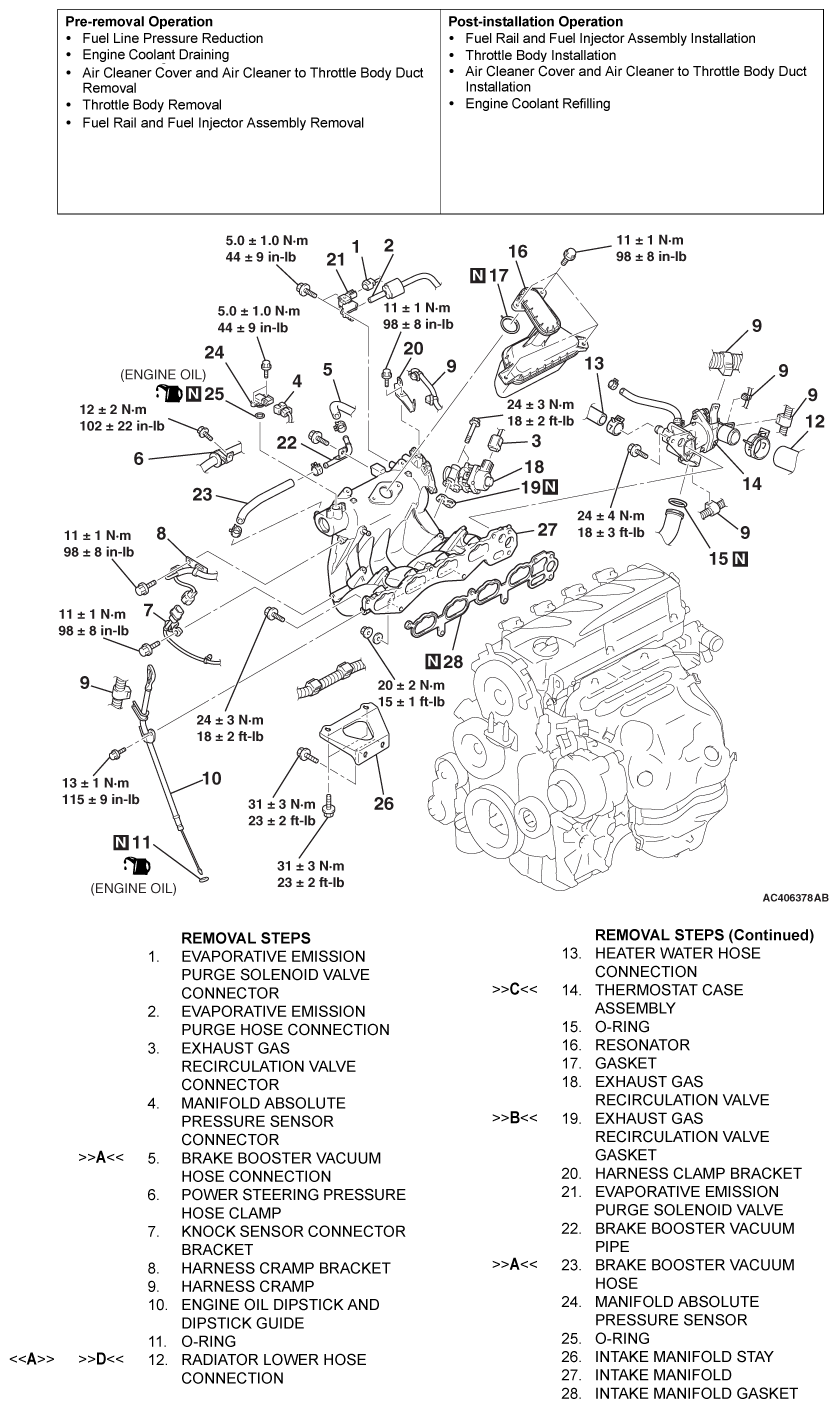

Fig 1: Intake Manifold Removal And Installation With Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
