Home >> Mitsubishi >> 2011 >> Eclipse GT >> Repair and Diagnosis >> Engine Mechanical >> Engine Intake System And Exhaust System >> Exhaust Pipe And Main Muffler >> Removal And Installation <2.4L Engine> >> Notes

Removal And Installation <2.4L Engine>: Notes

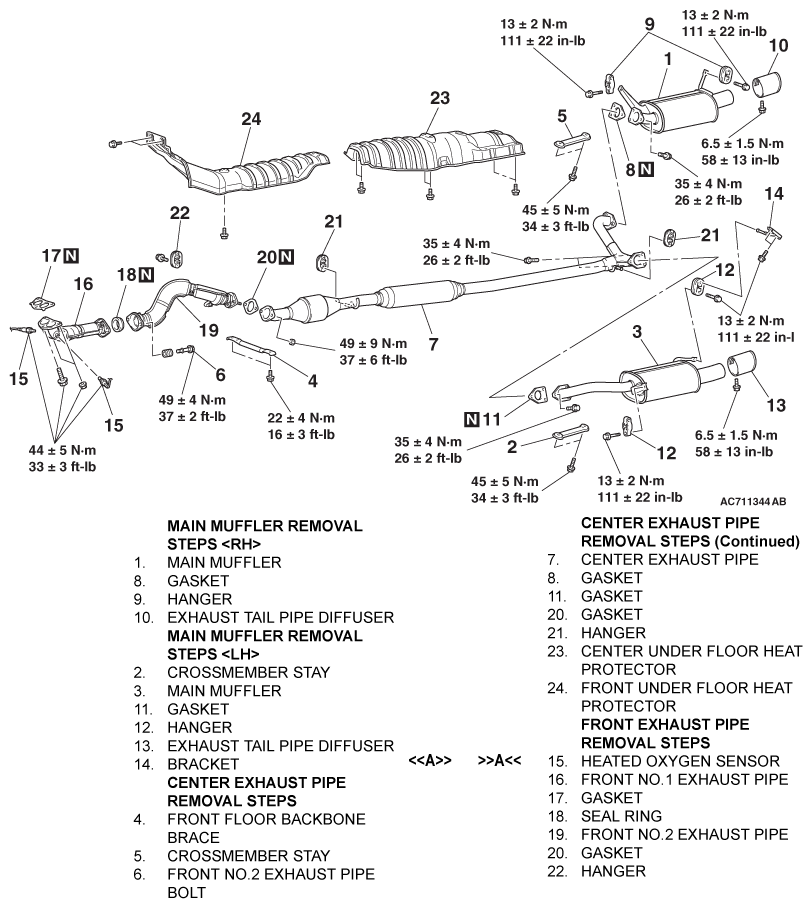

Fig 1: Exhaust Pipe And Main Muffler Removal And Installation With Torque Specifications - 2.4L Engine
G06684331Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
