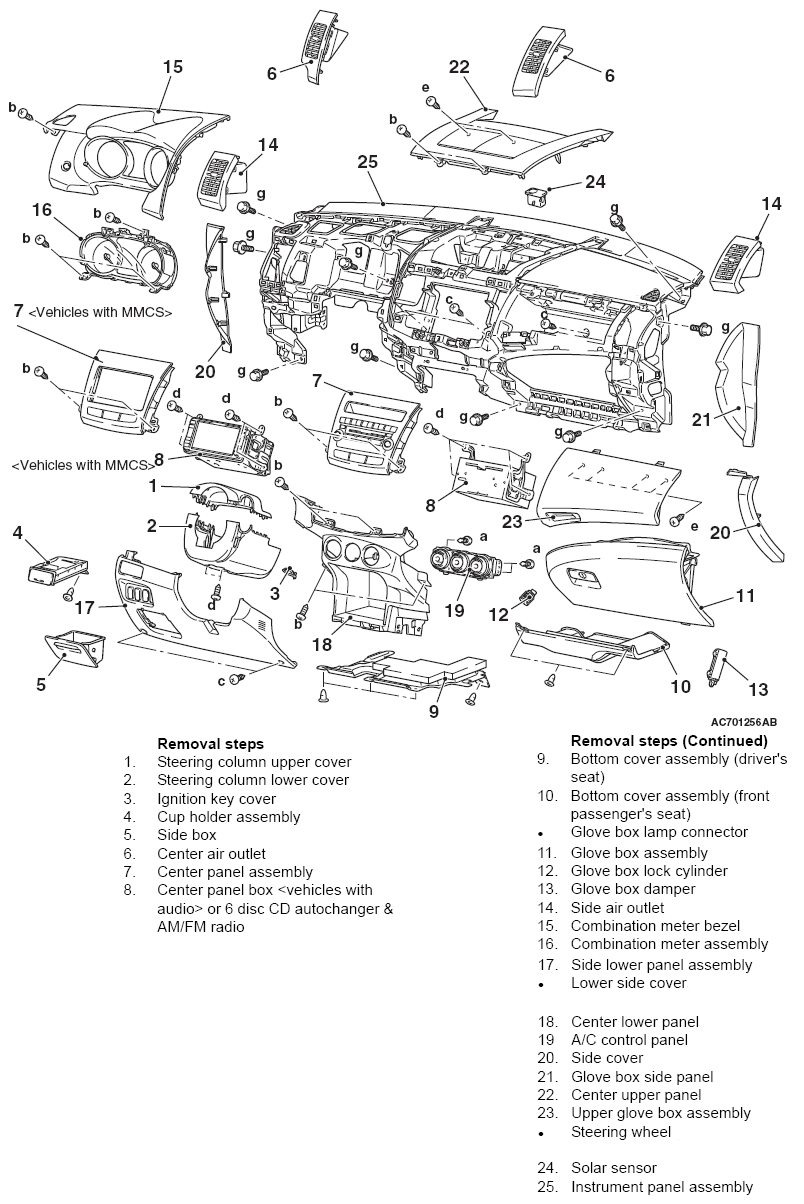

Removal And Installation
The following bolts and screws are used for installing the instrument panel: The bolts and screws are indicated by symbols in the graphics in REMOVAL AND INSTALLATION and DISASSEMBLY AND ASSEMBLY .
INSTRUMENT PANEL BOLTS AND SCREWS REFERENCE TABLE
| Name | Symbol | Dimensions mm (screw diameter x screw length) | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 x 12 | - | |
| b | 5 x 16 | - | ||
| c | 5 x 12 | Black | ||
| d | 5 x 14 | - | ||
| e | 5 x 16 | - | ||
| f | 5 x 16 | Black | ||
| g | 5 x 20 | - | ||
| Washer-assembled bolt | h | 6 x 16 | - |
CAUTION:
- For the removal of the front passenger's air bag module, refer to SERVICE PRECAUTIONS , Driver's and Front Passenger's AIR BAG MODULES AND CLOCK SPRING before operation.
- Do not subject SRS-ECU to any shocks when removing or installing the instrument panel.
