OEM Component Locations: Sensor

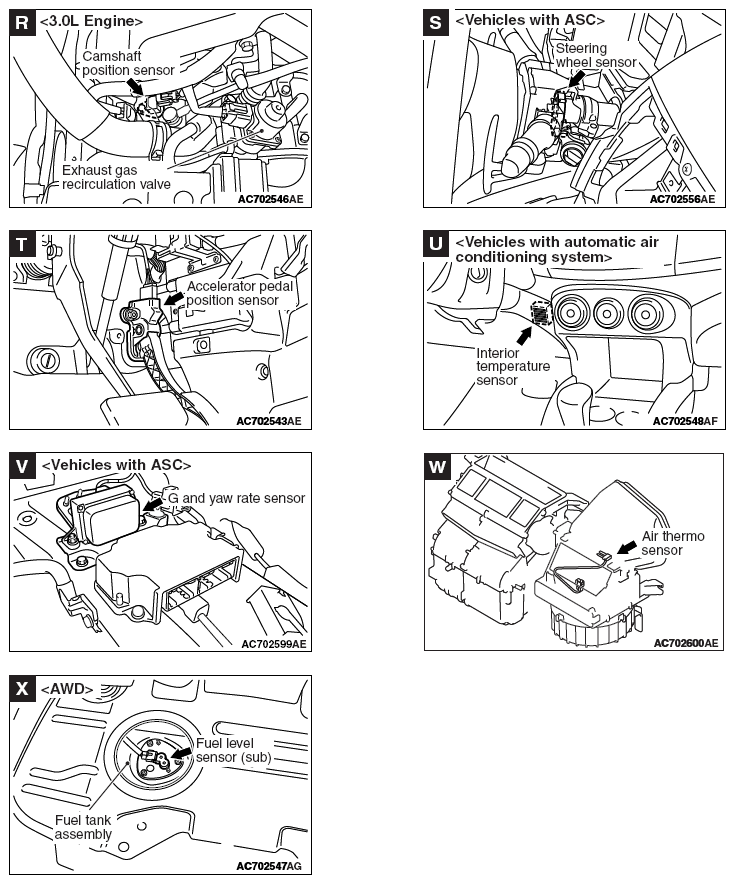

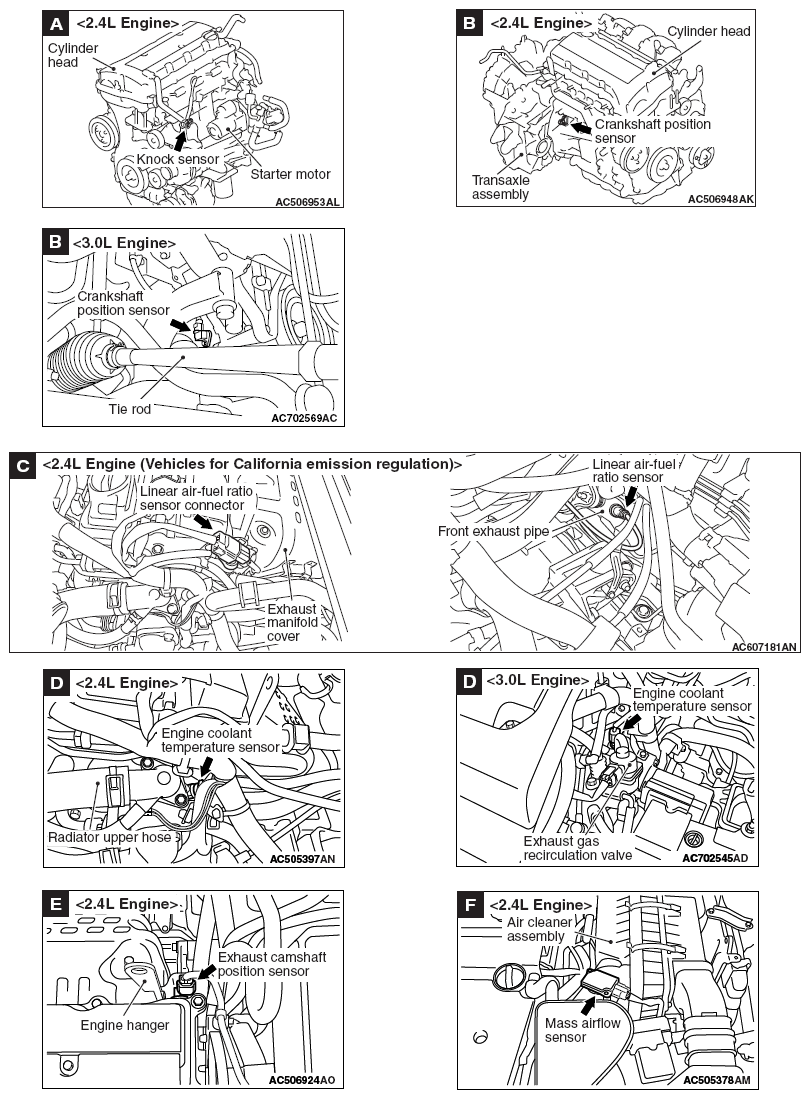

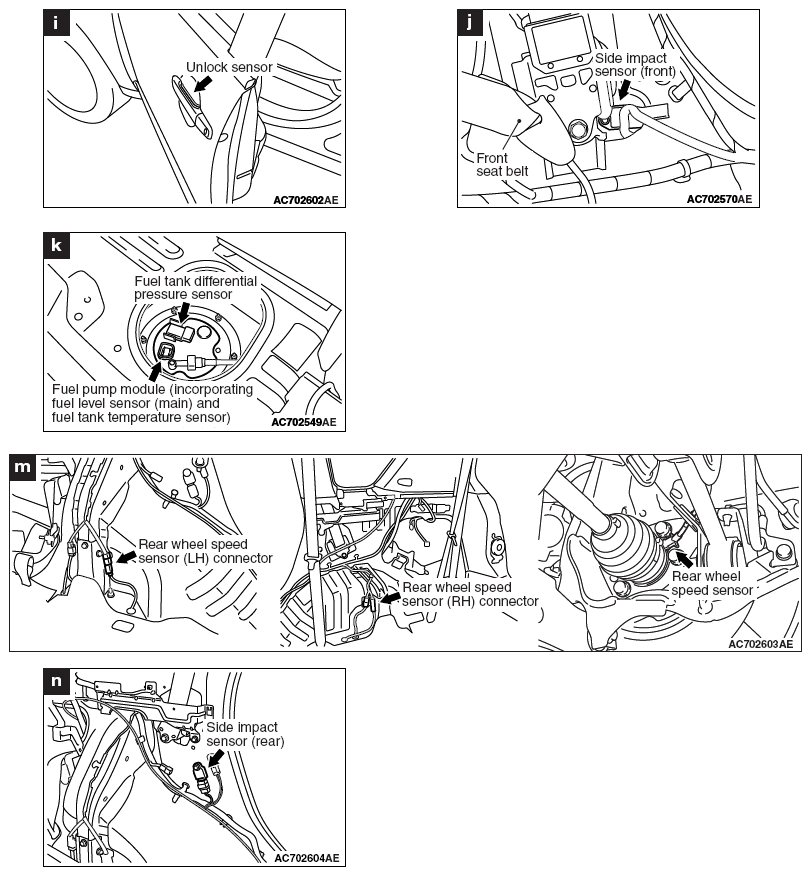

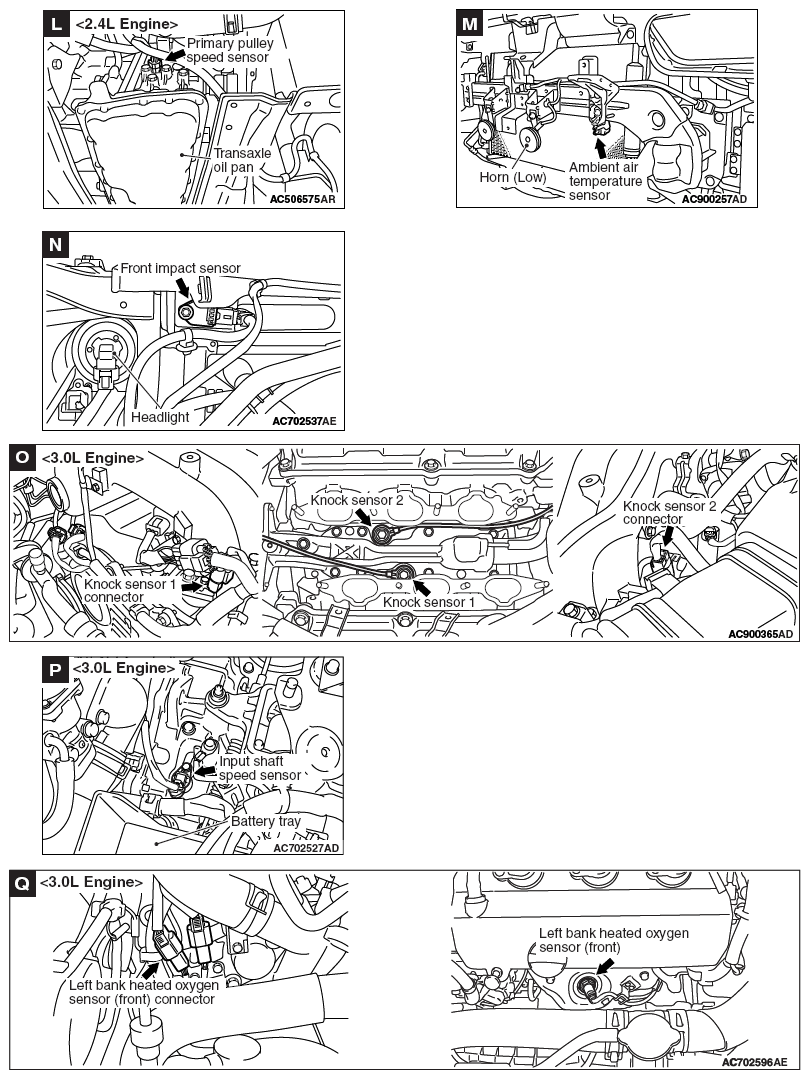

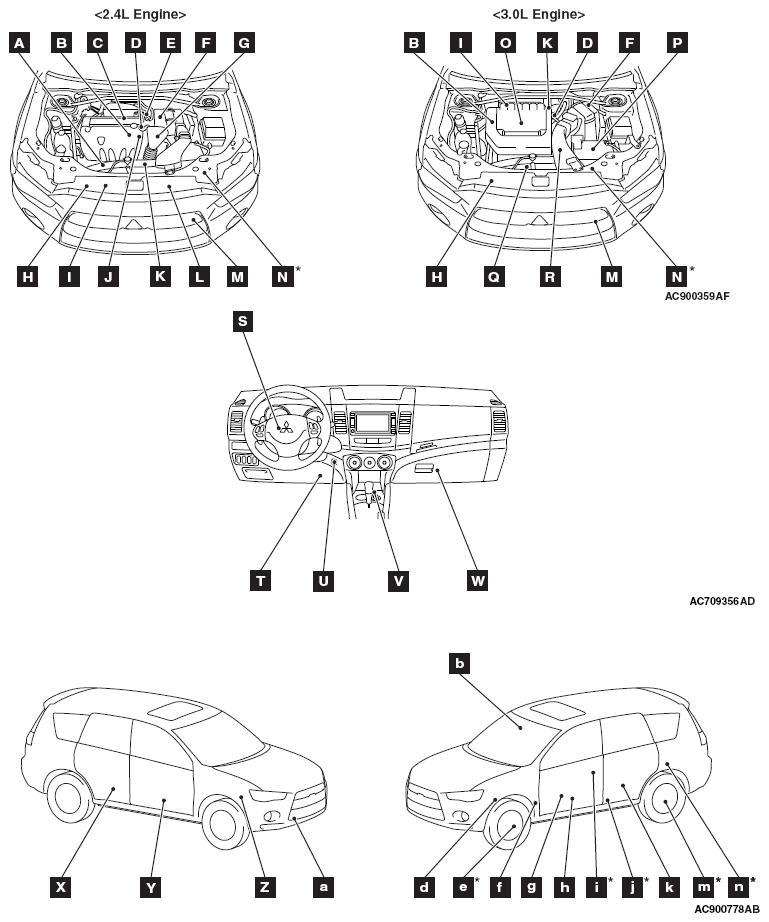

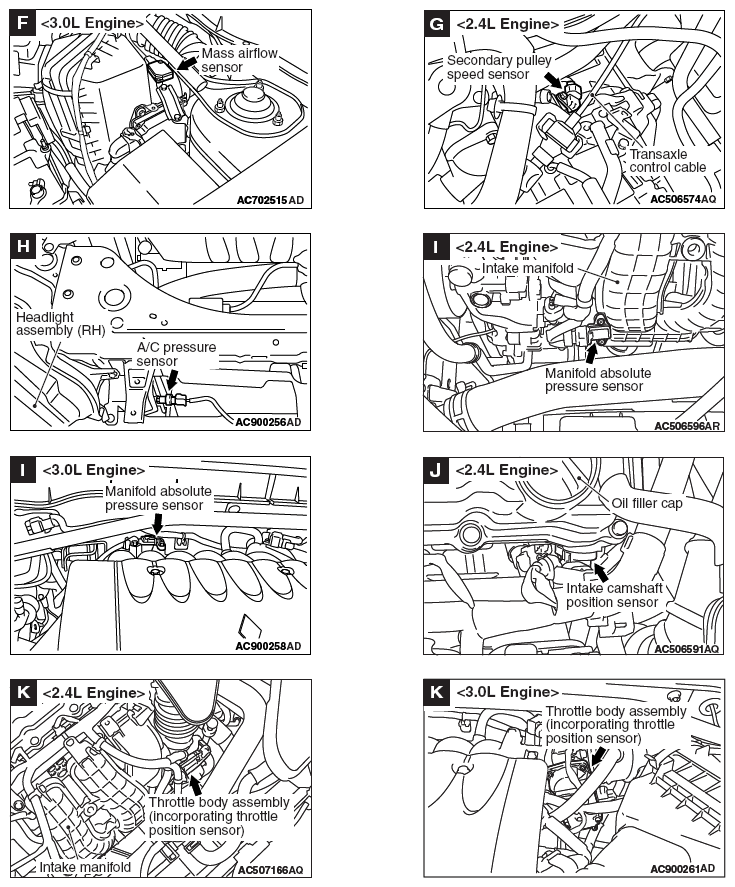

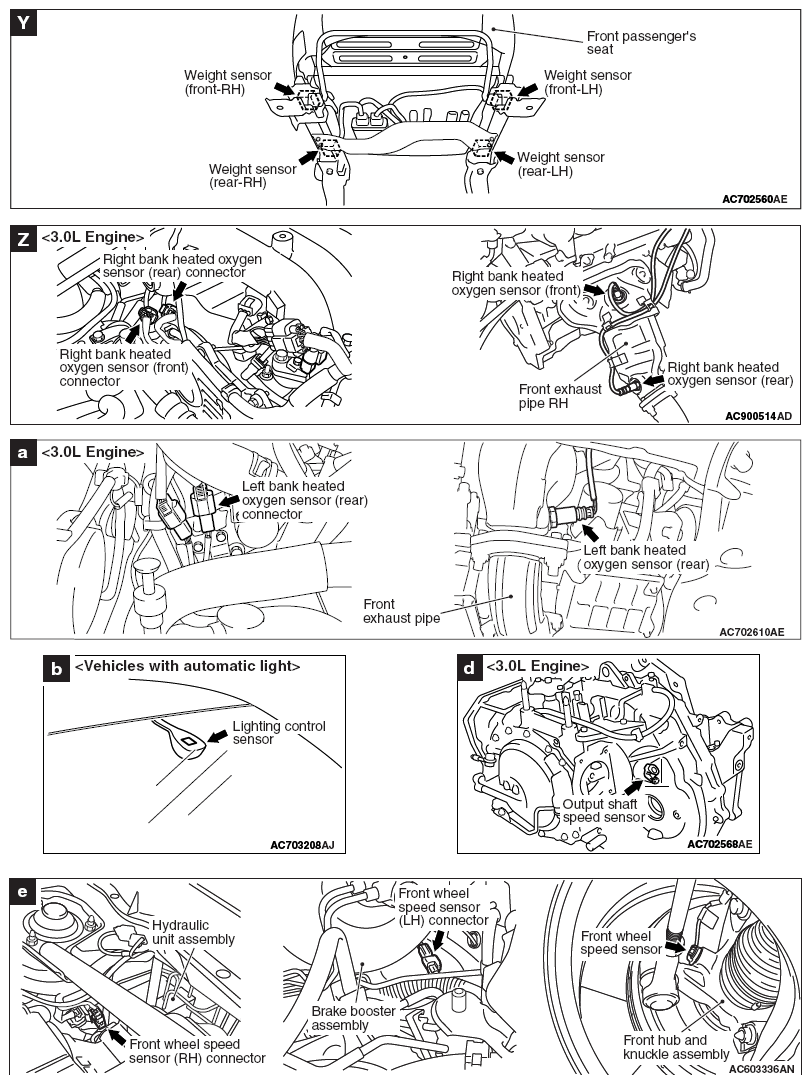

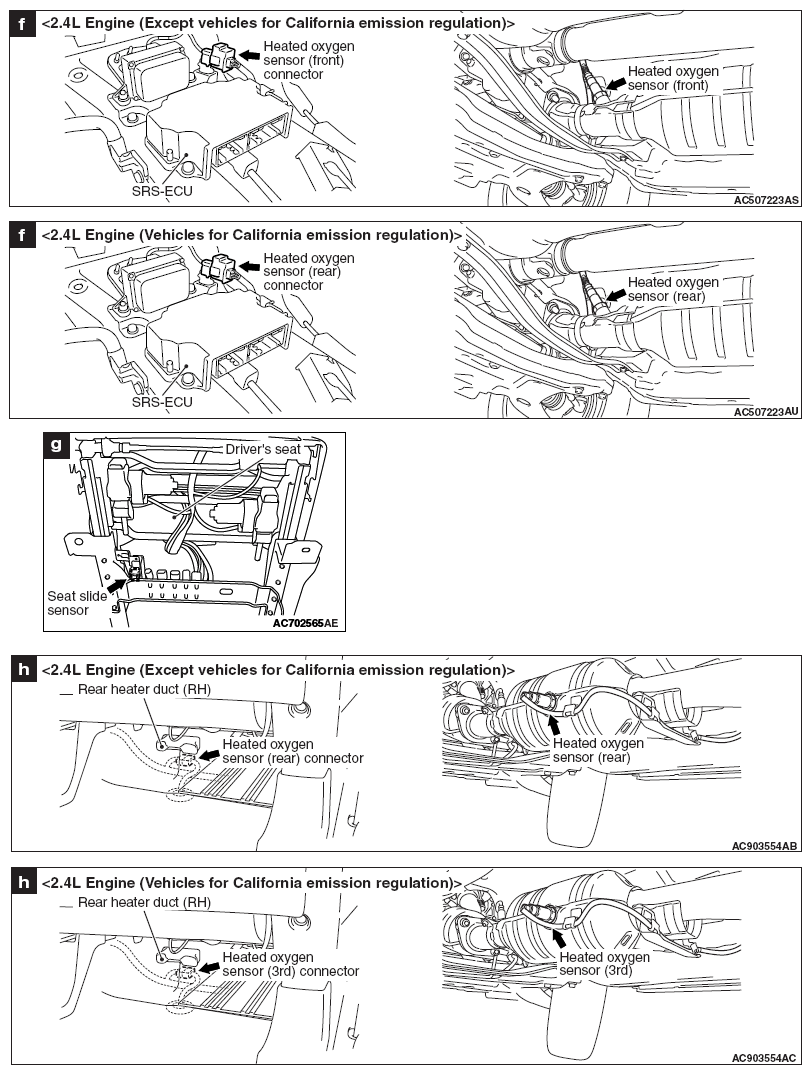

SENSOR SYMBOLS REFERENCE CHART
| Name | Symbol | Name | Symbol |
|---|---|---|---|
| A/C pressure sensor | H | Knock sensor 1 < 3.0L Engine > | O |
| Accelerator pedal position sensor | T | Knock sensor 2 < 3.0L Engine > | O |
| Air thermo sensor | W | Left bank heated oxygen sensor (front) < 3.0L Engine > | Q |
| Ambient air temperature sensor | M | Left bank heated oxygen sensor (rear) < 3.0L Engine > | a |
| Camshaft position sensor < 3.0L Engine > | R | Lighting control sensor < Vehicles with automatic light > | b |
| Crankshaft position sensor | B | Linear air-fuel ratio sensor < 2.4L Engine (Vehicles for California emission regulation) > | C |
| Engine coolant temperature sensor | D | Manifold absolute pressure sensor | I |
| Exhaust camshaft position sensor < 2.4L Engine > | E | Mass airflow sensor | F |
| Front impact sensor | N | Output shaft speed sensor < 3.0L Engine > | d |
| Front wheel speed sensor | e | Primary pulley speed sensor < 2.4L Engine > | L |
| Fuel level sensor (sub) < AWD > | X | Rear wheel speed sensor | m |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | k | Right bank heated oxygen sensor (front) < 3.0L Engine > | Z |
| Fuel tank differential pressure sensor | k | Right bank heated oxygen sensor (rear) < 3.0L Engine > | Z |
| G and yaw rate sensor < Vehicles with ASC > | V | Seat slide sensor | g |
| Heated oxygen sensor (front) < 2.4L Engine (Except vehicles for California emission regulation) > | f | Secondary pulley speed sensor < 2.4L Engine > | G |
| Heated oxygen sensor (rear) < 2.4L Engine (Except vehicles for California emission regulation) > | h | Side impact sensor (front) | j |
| Heated oxygen sensor (rear) < 2.4L Engine (Vehicles for California emission regulation) > | f | Side impact sensor (rear) | n |
| Heated oxygen sensor (3rd) < 2.4L Engine (Vehicles for California emission regulation) > | h | Steering wheel sensor < Vehicles with ASC > | S |
| Input shaft speed sensor < 3.0L Engine > | P | Throttle body assembly (incorporating throttle position sensor) | K |
| Intake camshaft position sensor < 2.4L Engine > | J | Unlock sensor < Vehicles with KOS > | i |
| Interior temperature sensor < Vehicles with automatic air conditioning system > | U | Weight sensor | Y |
| Knock sensor < 2.4L Engine > | A |
NOTE:
The * symbols indicate equipment at both sides.
