Control Unit

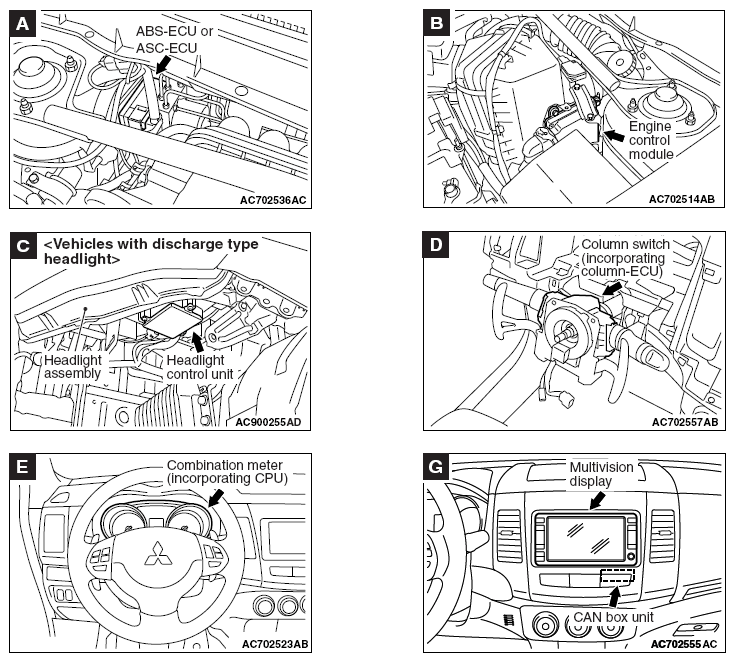

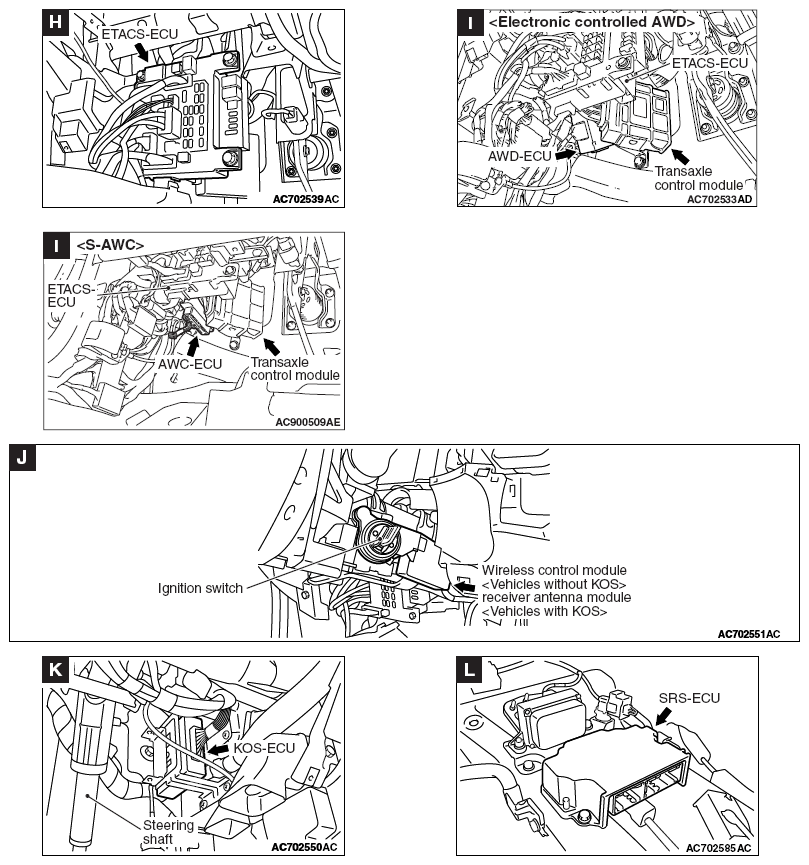

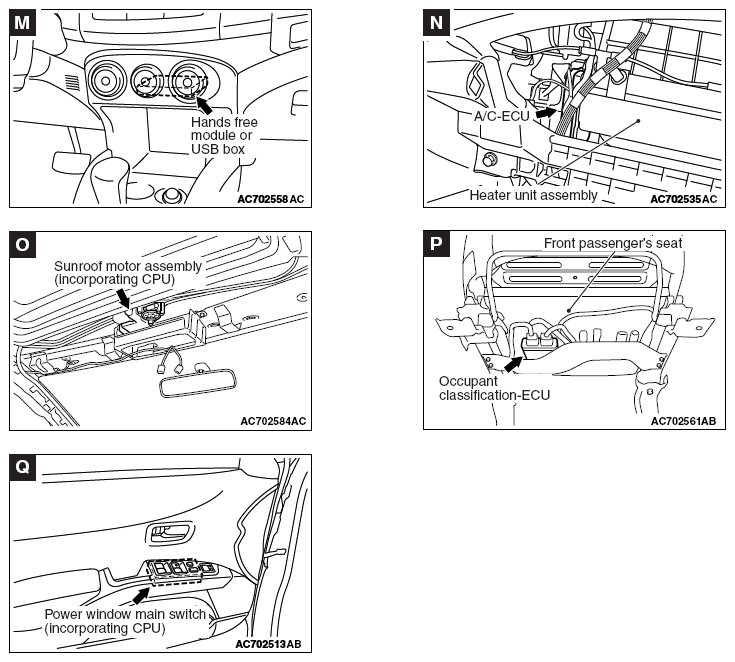

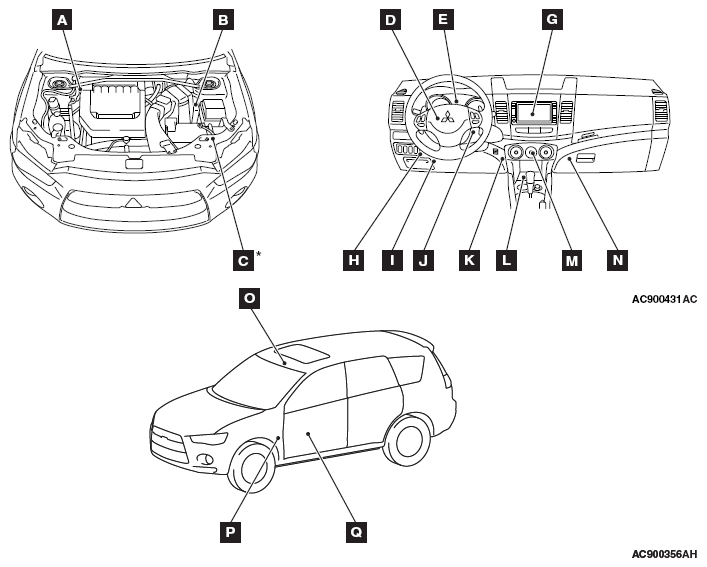

CONTROL UNIT SYMBOLS REFERENCE CHART
| Name | Symbol | Name | Symbol |
|---|---|---|---|
| A/C-ECU | N | Headlight control unit < Vehicles with discharge type headlight > | C |
| ABS-ECU | A | KOS-ECU | K |
| ASC-ECU | A | Multivision display | G |
| AWC-ECU < S-AWC > | I | Occupant classification-ECU | P |
| AWD-ECU < Electronic controlled AWD > | I | Power window main switch (incorporating CPU) | Q |
| CAN box unit | G | Receiver antenna module < Vehicles with KOS > | J |
| Column switch (incorporating column-ECU) | D | SRS-ECU | L |
| Combination meter (incorporating CPU) | E | Sunroof motor assembly (incorporating CPU) | O |
| Engine control module | B | Transaxle control module | I |
| ETACS-ECU | H | USB box | M |
| Hands free module | M | Wireless control module < Vehicles without KOS > | J |
NOTE:
The * symbols indicate equipment at both sides.
