LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2010
>>
Outlander XLS, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Battery
>>
Removal And Installation
Removal And Installation

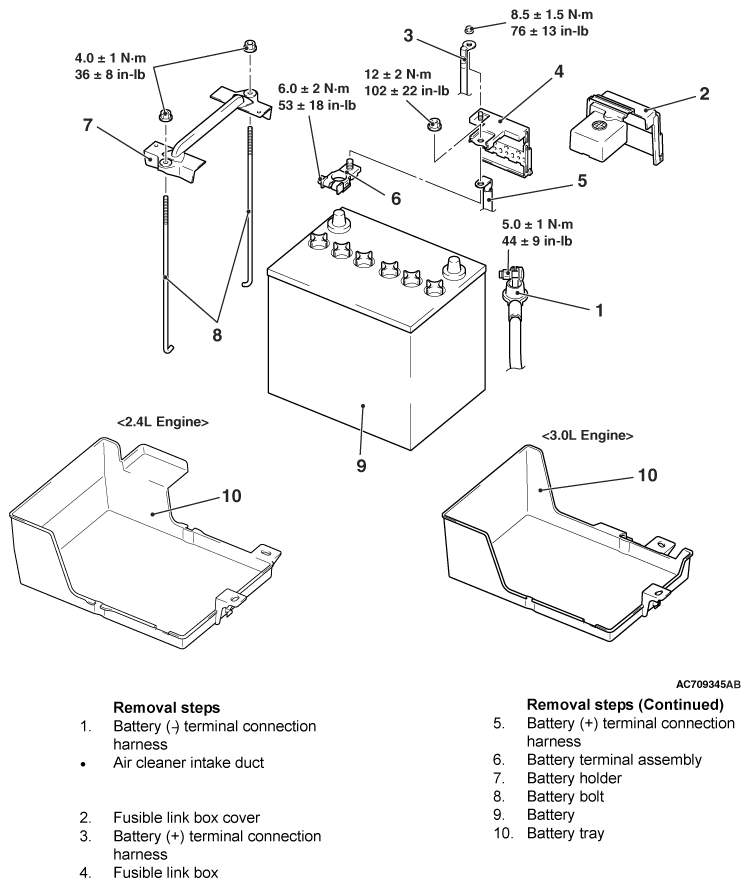

Fig 1: Battery Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
