Home >> Mitsubishi >> 2010 >> Outlander XLS, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass >> Liftgate Window Glass >> Removal And Installation >> Notes

Removal And Installation: Notes

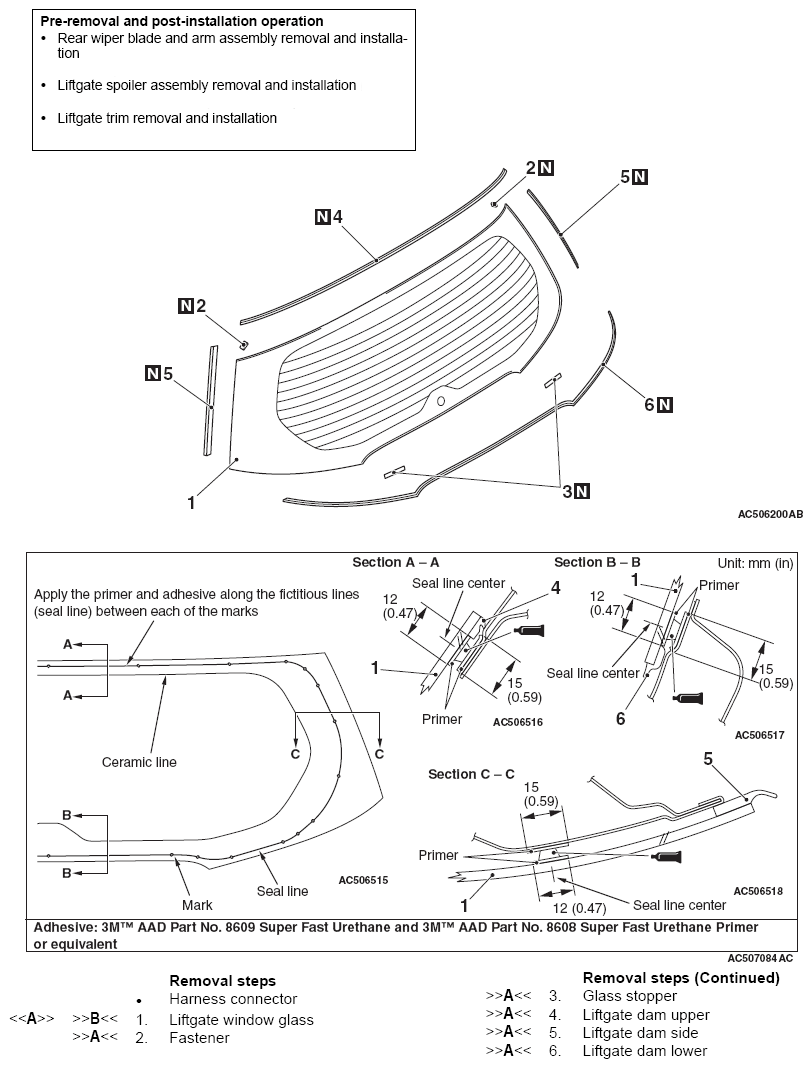

Fig 1: Exploded View Of Liftgate Window Glass

G06483115

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
