Home >> Mitsubishi >> 2010 >> Outlander XLS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Intake System And Exhaust System >> Intake Manifold Plenum < 3.0L Engine > >> Removal And Installation >> Notes

Removal And Installation: Notes

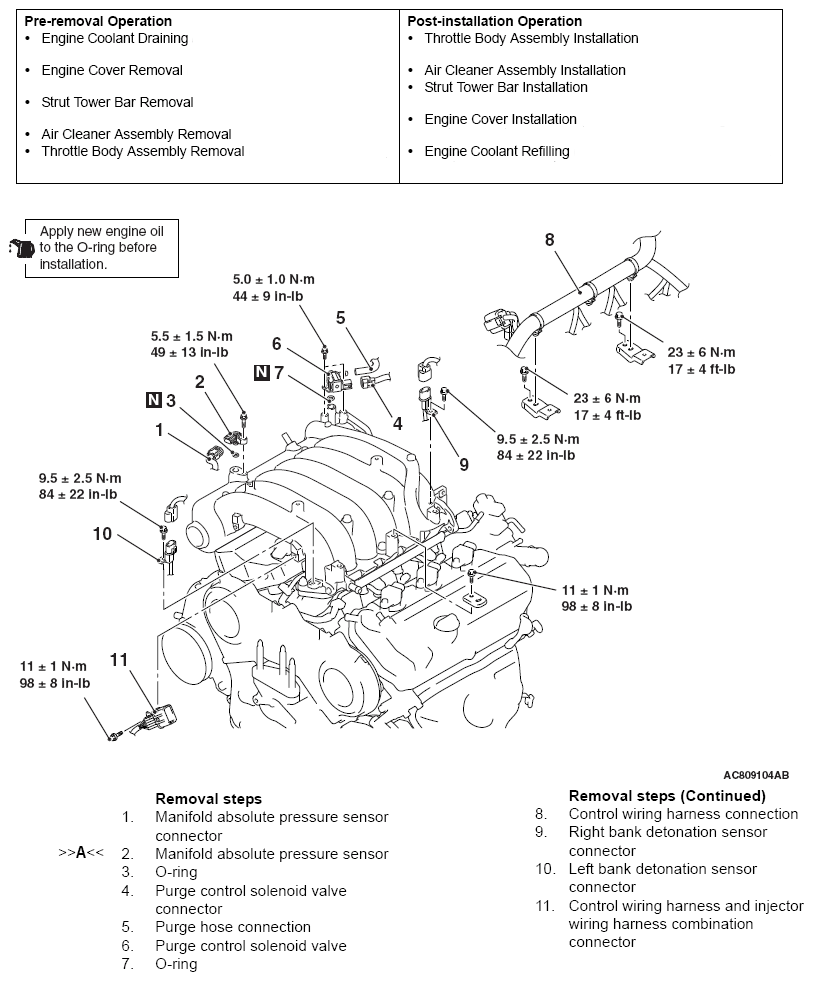

Fig 1: Intake Manifold Plenum Replacement Components With Torque Specifications - 3.0L Engine (1 Of 2)
G06481569Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

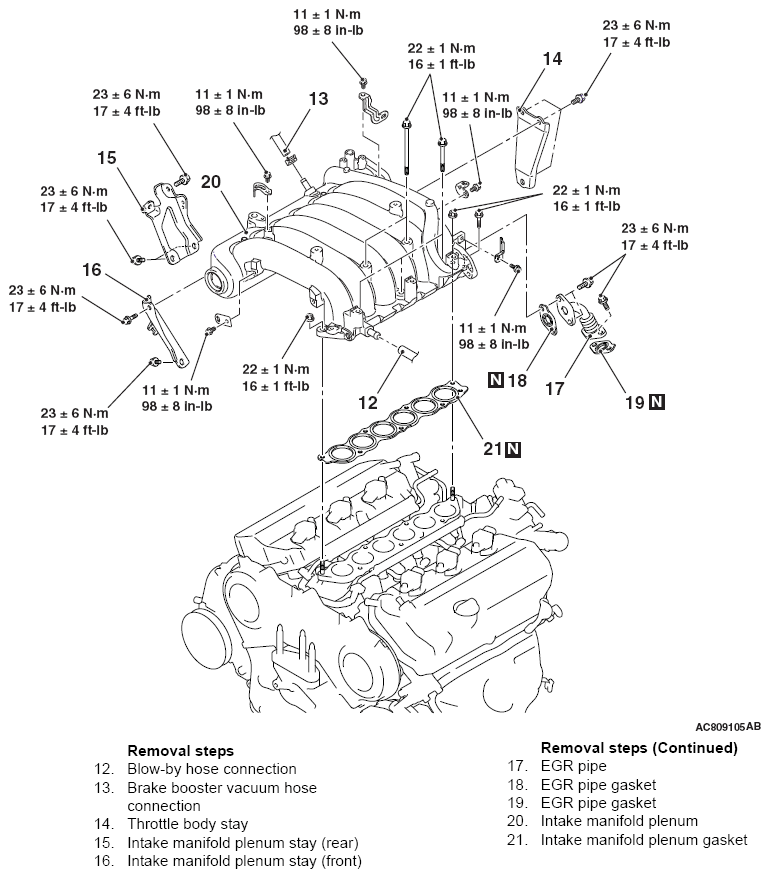

Fig 2: Intake Manifold Plenum Replacement Components With Torque Specifications - 3.0L Engine (2 Of 2)
G06481570Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
