Removal And Installation: Notes

CAUTION: For the removal of the headlining, refer to SERVICE PRECAUTIONS and CURTAIN AIR BAG MODULE ).

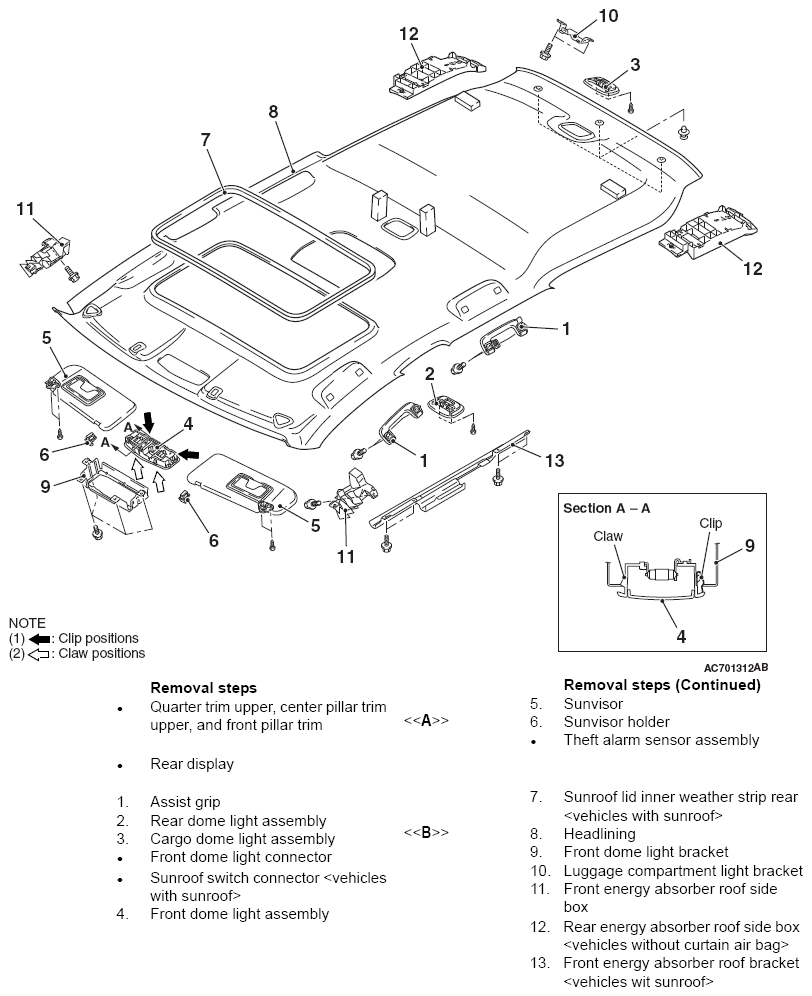

Fig 1: Headlining Replacement Components With Torque Specifications
G06483754Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
