Disassembly And Reassembly: Notes

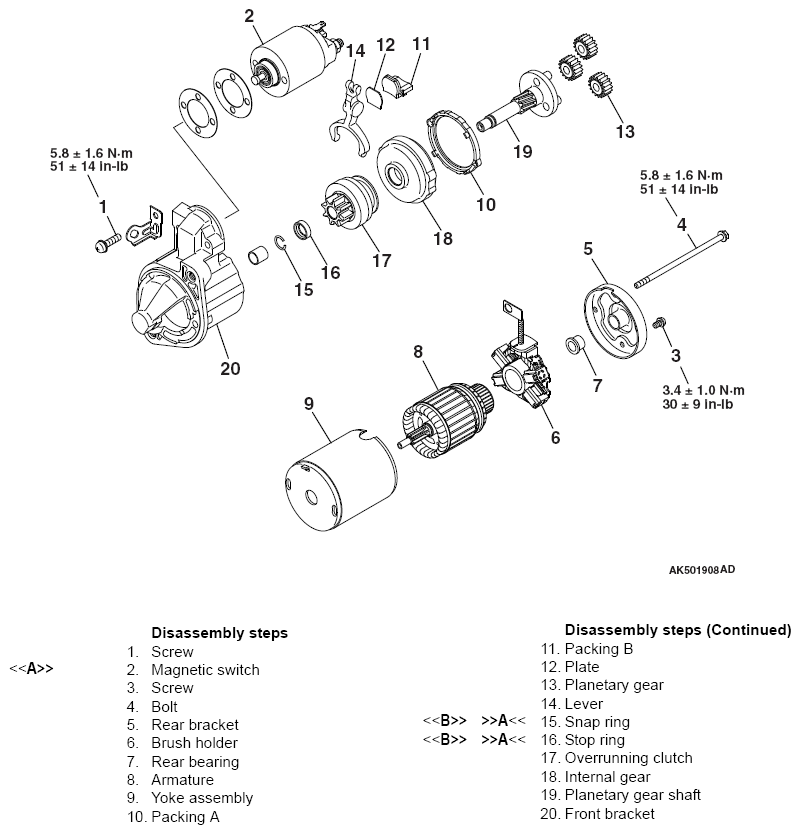

Fig 1: Exploded View Of Starter Motor With Torque Specifications

G06481661

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
