Section 12 (Continuously Variable Transaxle On-Vehicle Service -- Lancer)
>>
General Information
>>
System Construction Diagram
System Construction Diagram
WARNING:
This page is about a different variant/trim than selected.

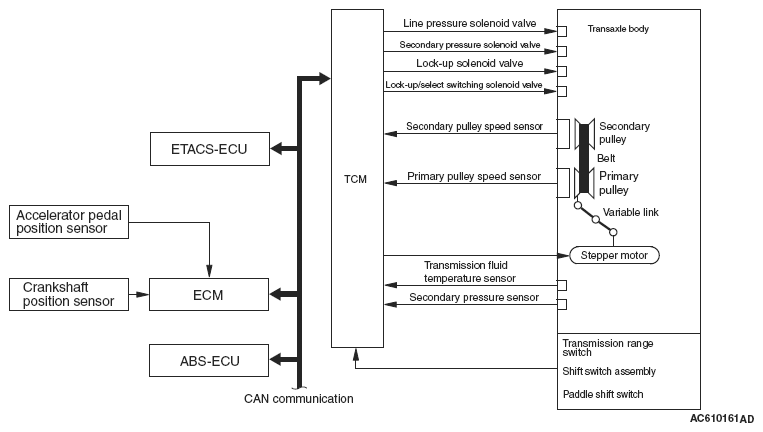

Fig 1: Transaxle System Construction Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
