INSPECTION PROCEDURE 10: The windshield washer does not work normally: Notes

WARNING: This page is about a different variant/trim than selected.

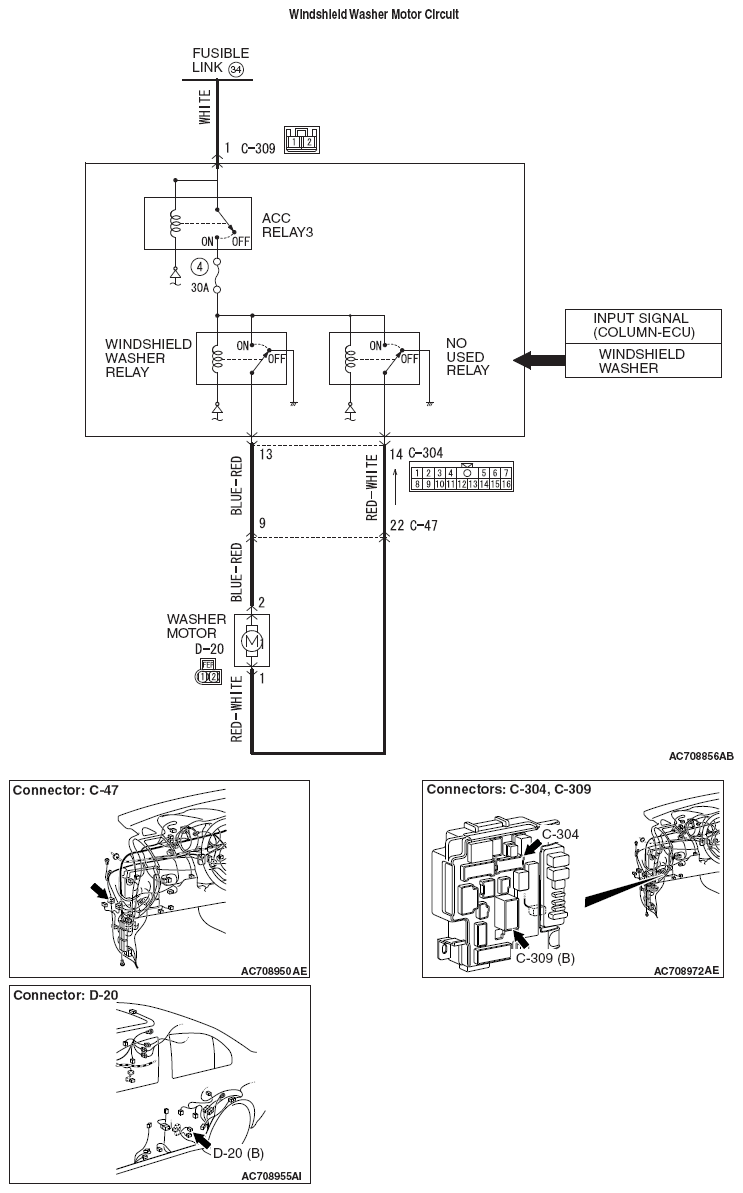

Fig 1: Windshield Washer Motor Circuit Diagram
G06677923Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
