Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

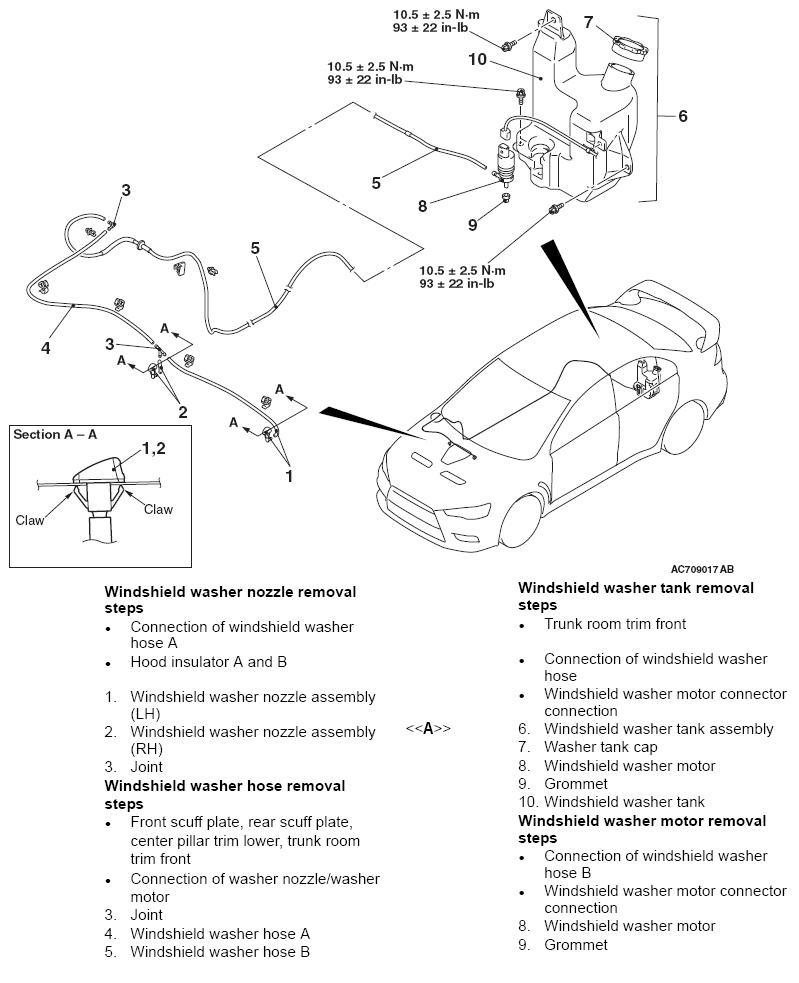

Fig 1: Windshield Washer Replacement Components With Torque Specifications
G06677939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: For removal and installation of the wiper and washer switch, refer to COLUMN SWITCH .
