ECM Reprogramming For DTCS P2096, P2097, Or P0133 (TSB-11-13-001)

ECM Reprogramming

1. Conduct the following steps to reprogram the ECM.

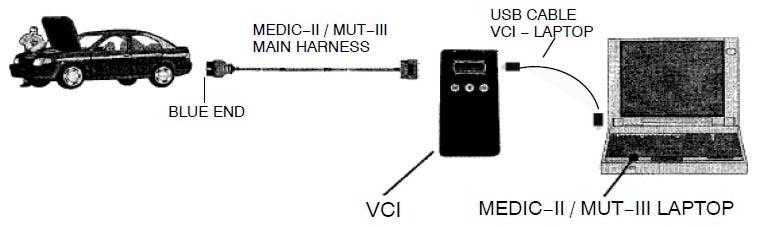

   1. Turn the ignition switch to the ON position. If the vehicle is equipped with the F.A.S.T. System, the transmitter must remain in the vehicle for the entire procedure.

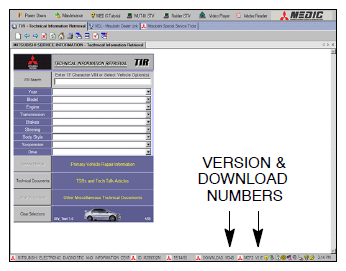

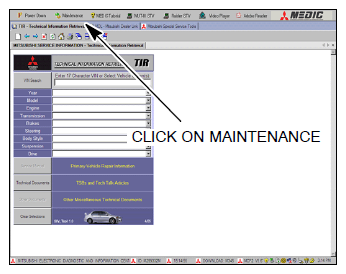

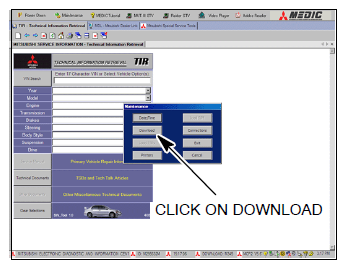

   2. If using MEDIC-II, from the main page, click the MUT-III STV icon at the top center of the screen.

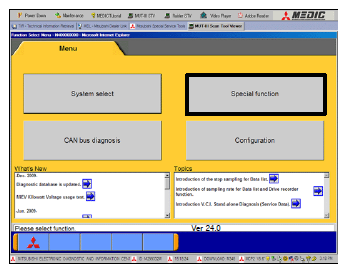

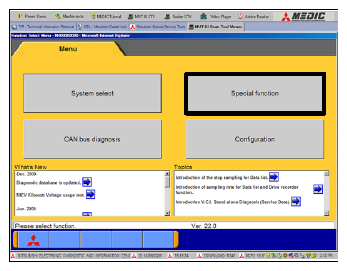

   3. Select "Special Function."

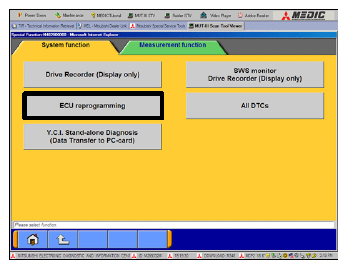

   4. Select "ECU reprogramming."

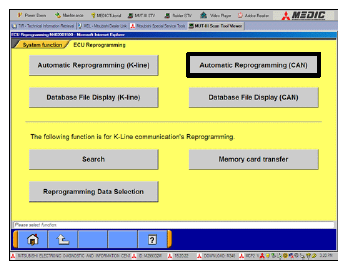

   5. Select "Automatic Reprogramming (CAN)."

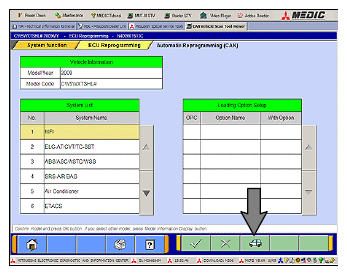

   6. Click on the car icon at the bottom of the page.

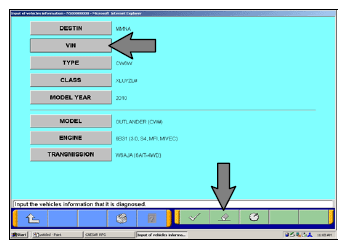

   7. If the VIN or vehicle description displayed does not match the vehicle you are working on, click on the eraser icon at the bottom of the page.

      Select VIN by clicking on the VIN button.

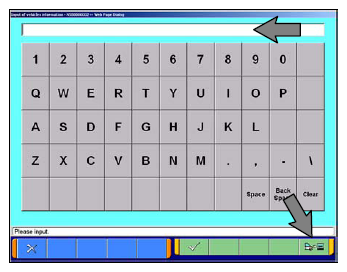

   8. Click on the icon in the lower RH corner of the screen to have MUT-III automatically read the VIN. If a message appears saying that the VIN cannot be input automatically, manually type the 17 digit VIN into the VIN field at the top of the page.

      Make sure the VIN is correct and click on the check mark.

   9. Confirm that all data matches the vehicle and click the check mark at the bottom of the page.

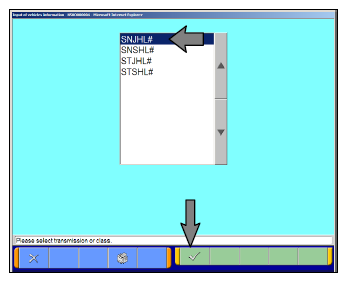

   10. A window may pop up asking you to select either the transmission type or vehicle class. Click the check mark to clear the window.

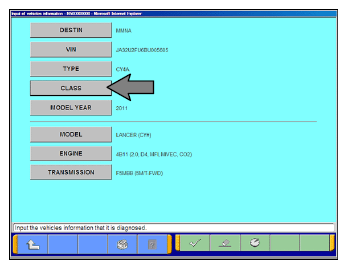

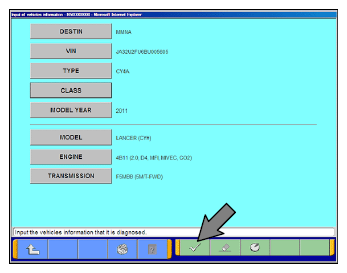

   11. Click on the CLASS button and make the appropriate selection from the menu (below right), Then click the check mark at the bottom of the page.

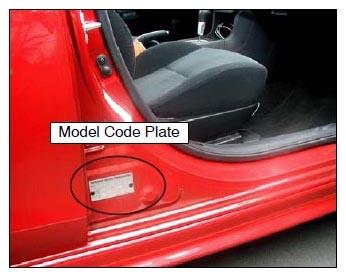

       NOTE: Vehicle class can be found on the Vehicle Information Code Plate riveted to the base of the RH b-pillar (see photo below, left). Vehicle class is part of the model code.

       Click the check mark to enter the class.

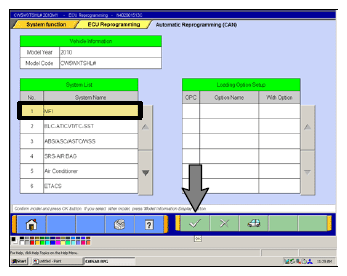

   12. MFI should be highlighted as the default. If not, click on it to highlight it.

       Click on the check mark at the bottom of the page.

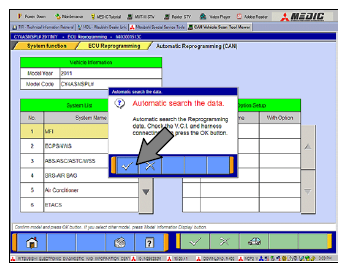

   13. A message will advise you that the system will "Automatic search the data."

       Click on the check mark to continue.

       ECM TO LATEST VERSION

       If an "Unnecessary Reprogramming" message does not  appear, continue with step n  .

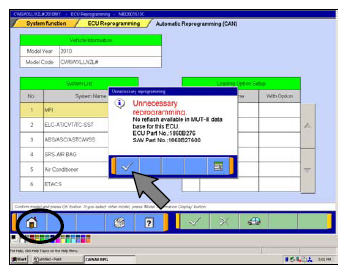

       If this message is displayed, the ECM software is already at the most current level. Do not continue with this reprogramming procedure.

       Click the check mark to clear the window, then click on the Home icon at the lower left corner of the screen to return to the System Select main page.

       Turn off the ignition switch and disconnect the MUT-III. Turn off and disconnect the battery charger.

   14. The CAN database screen will display.

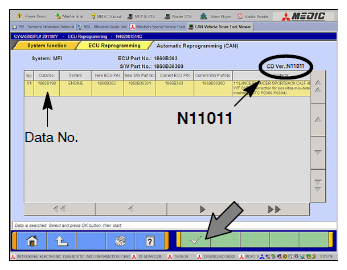

       Confirm the database number at the top right of the table is N11011  or higher.

       If more than one row is displayed in the table, refer to the ECM Reprogramming Chart  on to select the proper Data No. for this procedure and select the appropriate row.

       Click on the correct row to highlight it.

       Click on the check mark to continue.

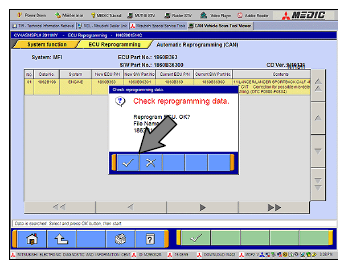

   15. A message will ask you to "Check reprogramming data."
   16. Click on the check mark to begin reprogramming.

       It will take up to 5 minutes for reprogramming to complete.

       CAUTION: The Daytime Running Lights and both the engine and condenser fans will automatically be turned on during reprogramming. Care should be taken to insure nothing gets caught in the moving blades. The radio will be turned off and you will also hear a chime in the interior for a short period of time. These are normal conditions.

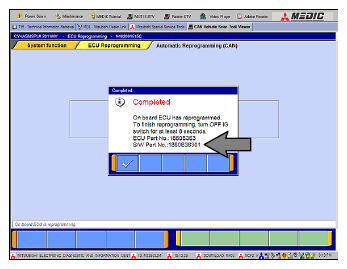

   17. This message will display when ECM

       reprogramming is successfully completed. Confirm the "S/W P/N" displayed matches the "New S/W P/N" in the table at the beginning of this TSB.

   18. You will be prompted to turn the ignition switch to the OFF position, wait at least 8 seconds, then turn it back on.
   19. Click the check mark and you will be returned to the "ECU Reprogramming" page.
2. Click the Home icon at the lower left corner of the page to return to the MUT-III main page.
3. Using the MUT-III, check and erase ALL DTCs from all systems as follows.

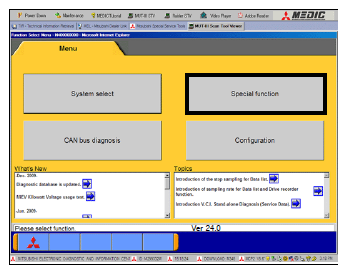

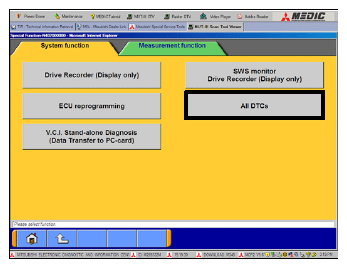

   1. Select "Special Function."
   2. Select "All DTCS," then select ERASE AND READ ALL DTCS.
   3. The list on the left side of the screen will have all selections checked. Do not change these selections. DTCs may be set if the vehicle is equipped with options that are unchecked.
      NOTE: At this time, the check mark at the bottom of the page is not highlighted (inactive).

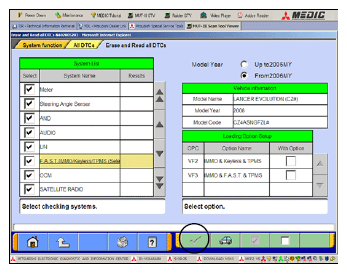

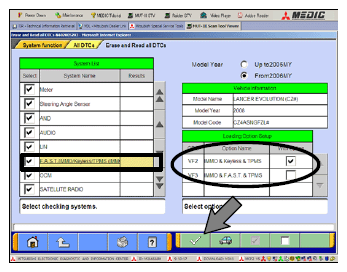

   4. In the left column, scroll to and click FAST/IMMOB/ KEYLESS. In the Loading Options Setup list (right column), if the vehicle is equipped with a standard ignition key with integral keyless entry, check the box for VF2 - IMMO & Keyless & TPMS. If the vehicle is equipped with the F.A.S.T. Key system, check the box for VF3 - IMMO & F.A.S.T & TPMS.
   5. If the check mark at the bottom of the page remains inactive, in the left column, scroll to and click underlined  system titles. When the Loading Options Setup list (right column) appears, click the appropriate box for your vehicle. Repeat this procedure until the check mark becomes active, then click it to continue.

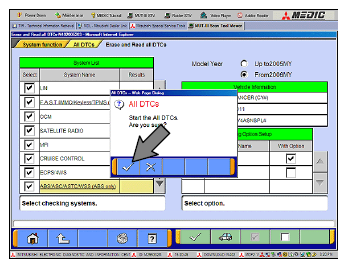

4. A window will pop up asking you to confirm All DTC erasing. Click the check mark to continue.
5. When DTC erasing is completed, a window will pop up. Click the check mark to clear the window. If DTCs remain, diagnose and repair the condition as per the Service Manual. If no additional DTCs are listed, click the check mark to clear the window and then click the Home icon in the lower left of the screen to return to the main menu.

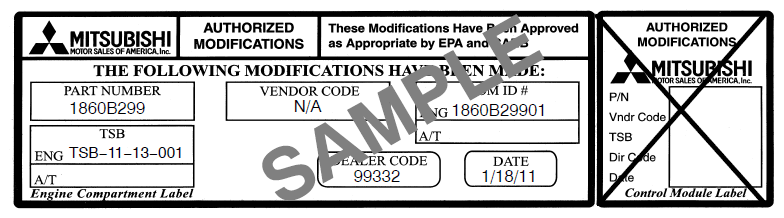

6. Using a ball-point pen, enter the appropriate Engine Control Module (ECM) part number, Software Part Number (ROM ID#), this Technical Service Bulletin number (TSB-11-13-001), your dealer code, and the current date on the Engine Compartment / Control Module Label (p/n MSSF024G00).

   The Vendor Code is not applicable. The label is available from your facing PDC.

   The Control Module Label is NOT used for this reflash. It should be discarded.

7. Carefully remove all dirt and oil from a vacant area near the VECI label on the underside of the hood, and affix the Engine Compartment Label (LH side, above) to that area.
8. Turn off and disconnect the battery charger.
9. Start the engine. If the engine idle is unstable, perform the following Electronic Throttle Valve (ETV) relearn procedure. If the idle is stable, go to step 10.
   1. Let the engine warm up. Connect the MUT-III and use the Data List under MFI to confirm the engine coolant temperature exceeds 85° C (185° F). The A/C switch should be OFF for this procedure.
   2. Turn off the ignition switch.
   3. Repeat the following steps 3 times:
      • Start the engine.
      • Turn the ignition switch to the OFF position and wait at least 10 seconds.
      • Restart the engine.
   4. After the third start, leave the engine running and allow it to idle for a minimum of 10 minutes.

      The ETV Relearn Procedure is complete.

10. Turn off the ignition switch and disconnect the MUT-III.
11. Operate the vehicle under the conditions described by the freeze frame data recorded in Step  1 of the Repair Procedure and confirm DTCs do not reset.
12. If DTCs reset, diagnose and repair as per the service manual.
