Removal And Installation: Notes

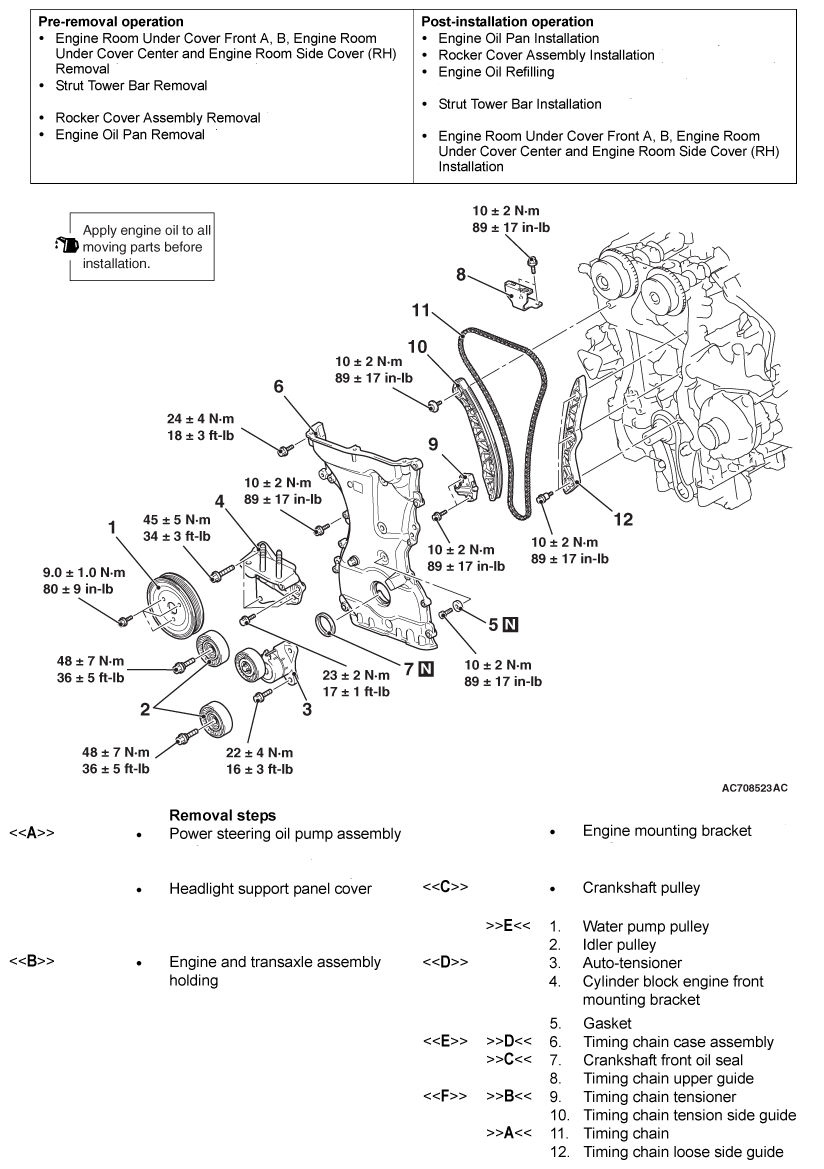

Fig 1: Timing Chain Replacement Components With Torque Specifications
G06674066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
