Disassembly And Assembly: Notes

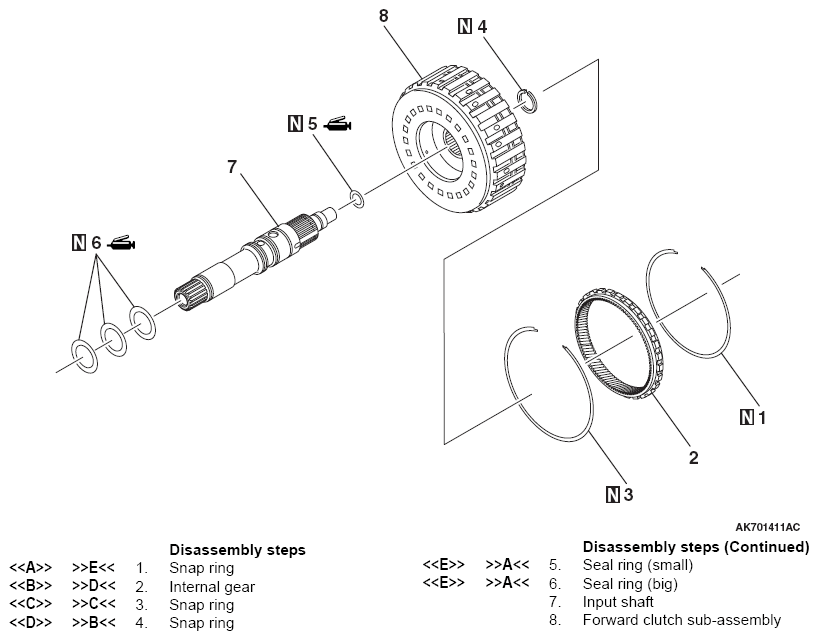

Fig 1: Exploded View Of Forward Clutch
G06672427Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
