Disassembly And Assembly: Notes

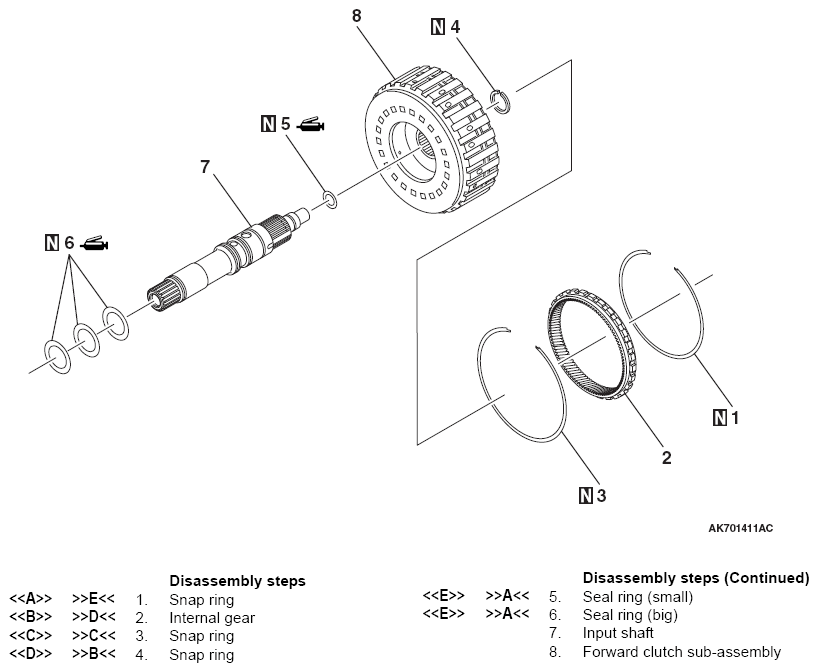

Fig 1: Identifying Forward Clutch Components
G06471870Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
