Explanation Of Contents

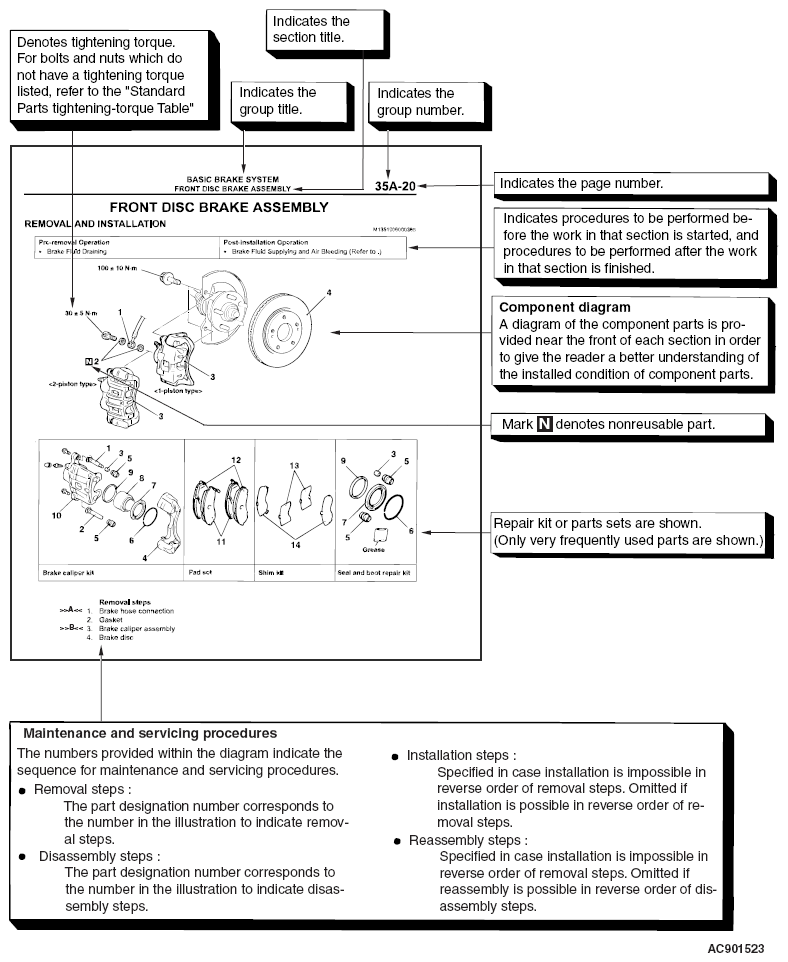

Fig 1: Exploded View Of Front Disc Brake Assembly
G06667468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

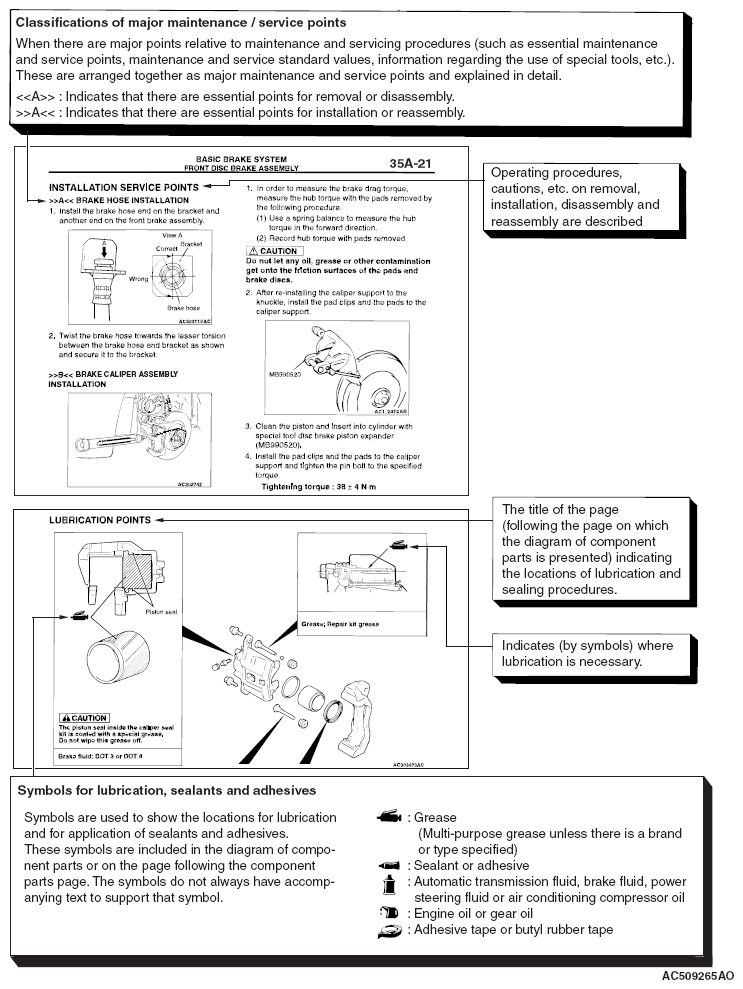

Fig 2: Identifying Grease Applying Area
G06667469Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
