Home >> Mitsubishi >> 2010 >> Galant ES >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Hoses >> Removal And Installation >> Notes

Removal And Installation: Notes

Fig 1: Exploded View Of Power Steering Hoses (2.4L) With Torque Specifications
G06715974Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

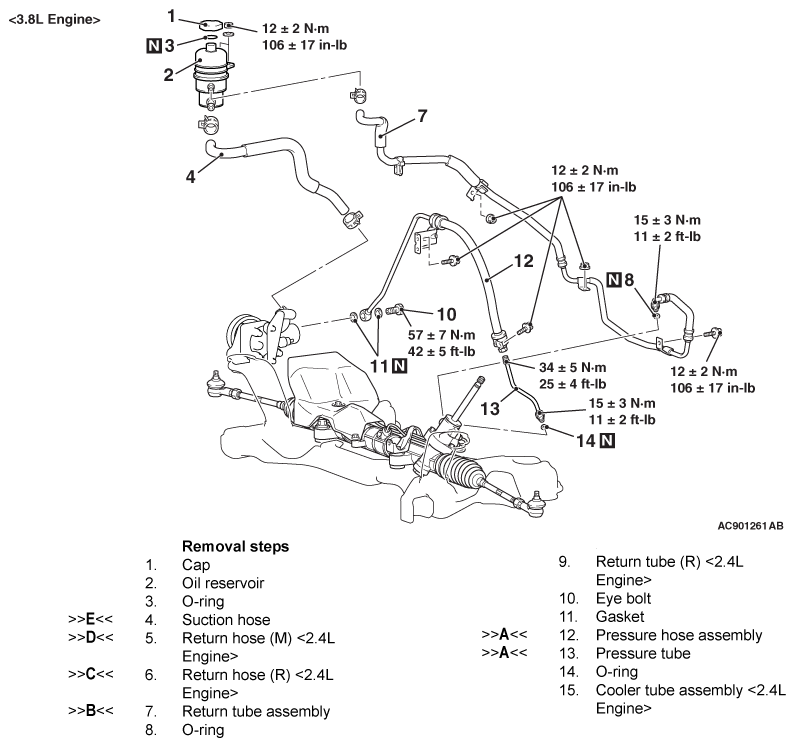

Fig 2: Exploded View Of Power Steering Hoses (3.8L Engine) With Torque Specifications
G06715975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
