Removal And Installation <3.8L Engine>: Notes

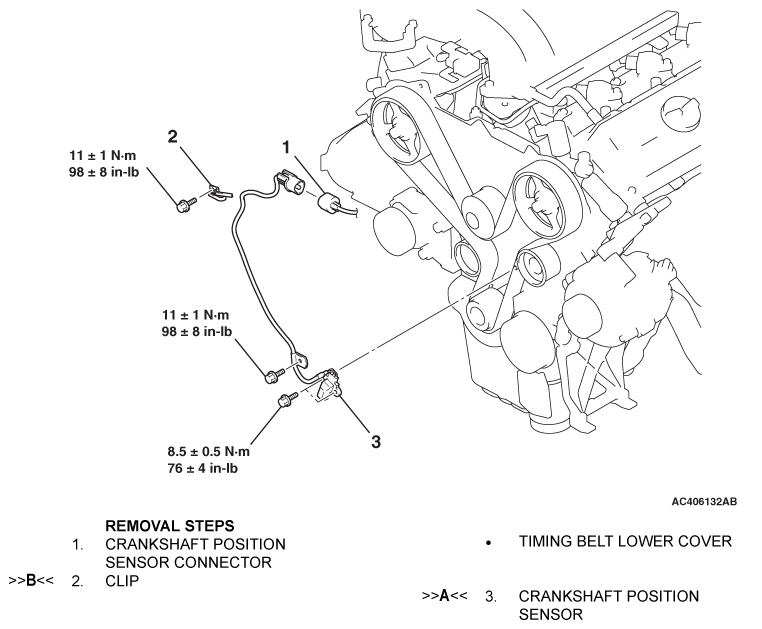

Fig 1: Exploded View Of Crankshaft Position Sensor (3.8L Engine) With Torque Specifications

G06717039

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
