Removal And Installation <3.8L Engine>: Notes

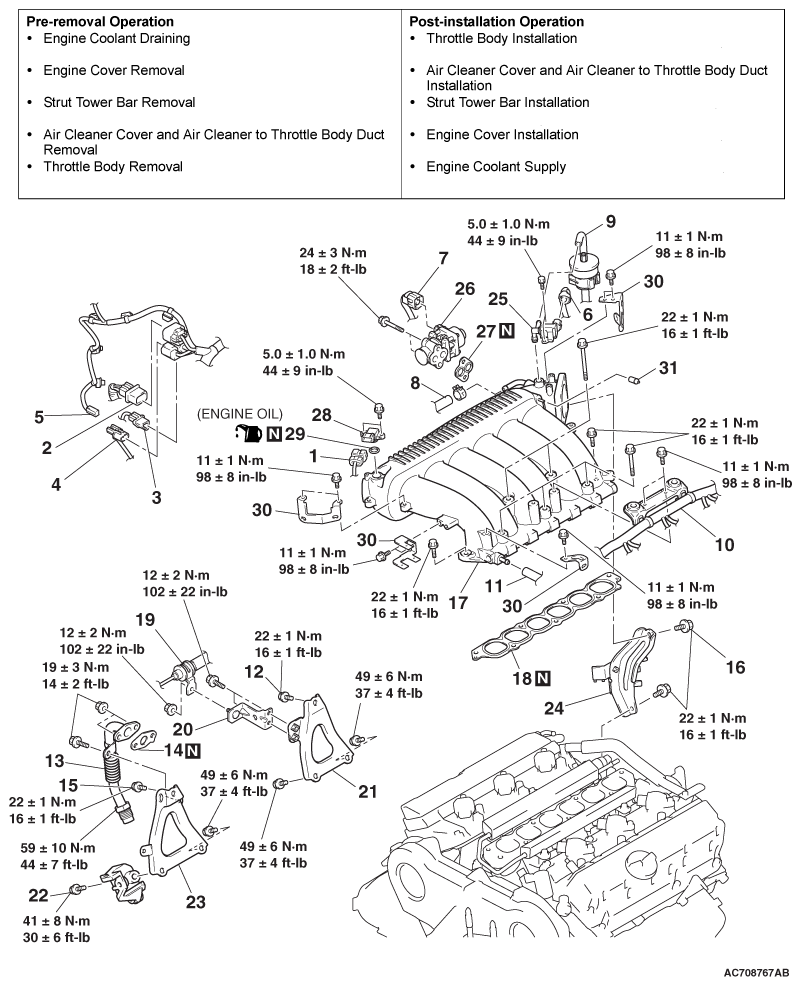

Fig 1: Exploded View Of Intake Manifold Plenum (3.8L Engine) With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

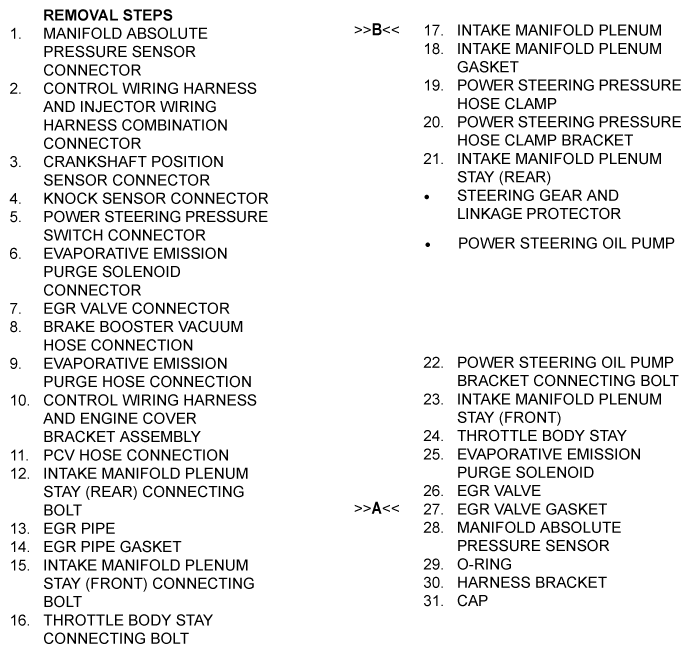

Fig 2: Intake Manifold Plenum Legends (3.8L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MD998412: Guide
