OEM Component Locations: Sensor

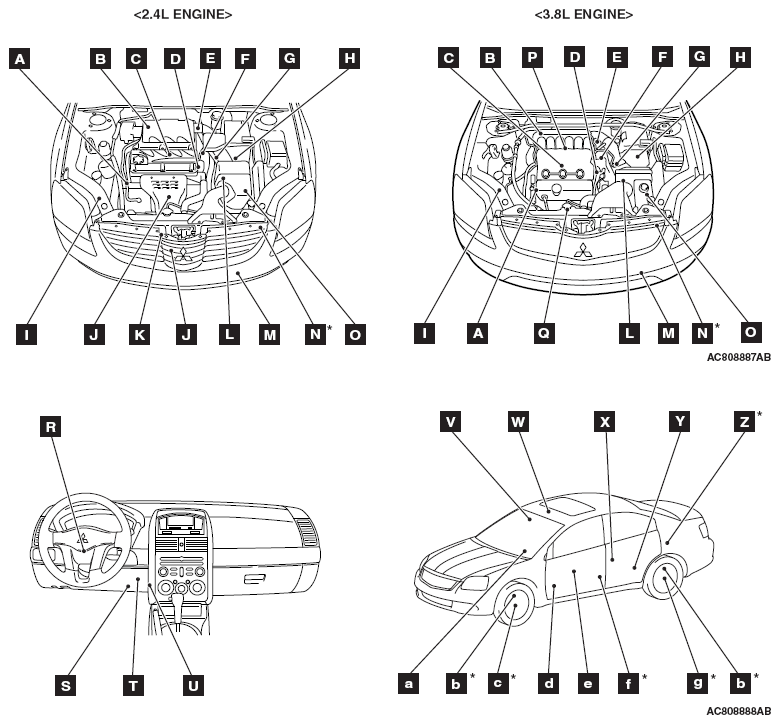

SENSOR SYMBOLS REFERENCE CHART

NAME	SYMBOL	NAME	SYMBOL
A/C pressure sensor	I	Knock sensor	C
A/T control solenoid valve assembly (Incorporating transmission fluid temperature sensor)	O	Left bank heated oxygen sensor (front) < 3.8L Engine >	Q
Accelerator pedal position sensor	S	Left bank heated oxygen sensor (rear) < 3.8L Engine >	Q
Air thermo sensor	U	Manifold absolute pressure sensor	B
Ambient temperature sensor	M	Mass airflow sensor	G
Camshaft position sensor	D	Occupant classification sensor (LH), (RH)	a

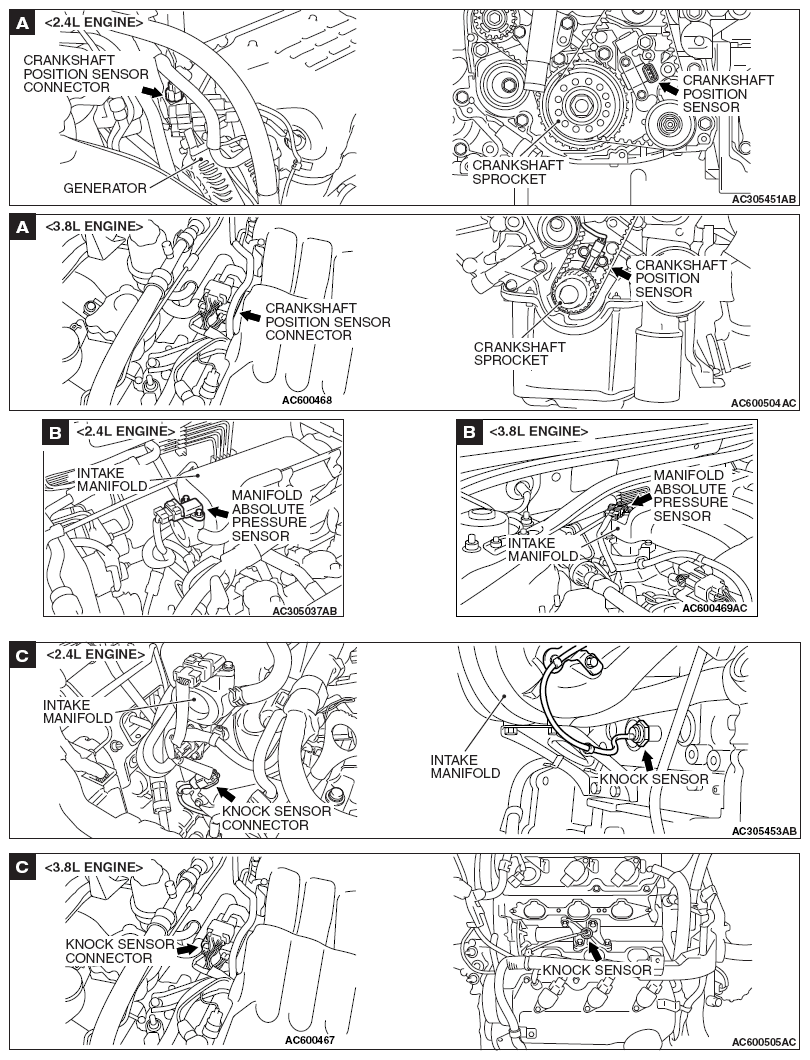

Crankshaft position sensor	A	Output shaft speed sensor	H
Cylinder 1, 4 heated oxygen sensor (front) < 2.4L Engine >	J	Radiator sensor < 2.4L Engine (Vehicles for California) >	K
Cylinder 1, 4 heated oxygen sensor (rear) < 2.4L Engine >	J	Rear light sensor < Automatic anti-dazzling mirror >	V
Cylinder 2, 3 heated oxygen sensor (front) < 2.4L Engine >	J	Right bank heated oxygen sensor (front) < 3.8L Engine >	P
Cylinder 2, 3 heated oxygen sensor (rear) < 2.4L Engine >	J	Right bank heated oxygen sensor (rear) < 3.8L Engine >	P
Engine coolant temperature sensor	F	Seat slide sensor	d
Front impact sensor	N	Side impact sensor (Front)	f
Front light sensor < Automatic anti-dazzling mirror >	V	Side impact sensor (Rear)	Z
Fuel level sensor (sub)	X	Steering wheel sensor	R
Fuel pump module (Incorporating fuel level sensor (main) and fuel tank temperature sensor)	Y	Sunroof assembly (Incorporating pulse sensor)	W
Fuel tank differential pressure sensor	Y	Throttle body assembly (Incorporating throttle position sensor)	E
G and yaw rate sensor	e	TPMS transmitter (Incorporating tire pressure sensor)	b
Input shaft speed sensor	L	Wheel speed sensor (front)	c
Interior temperature sensor < Automatic A/C >	T	Wheel speed sensor (rear)	g
