OEM Component Locations: Relay

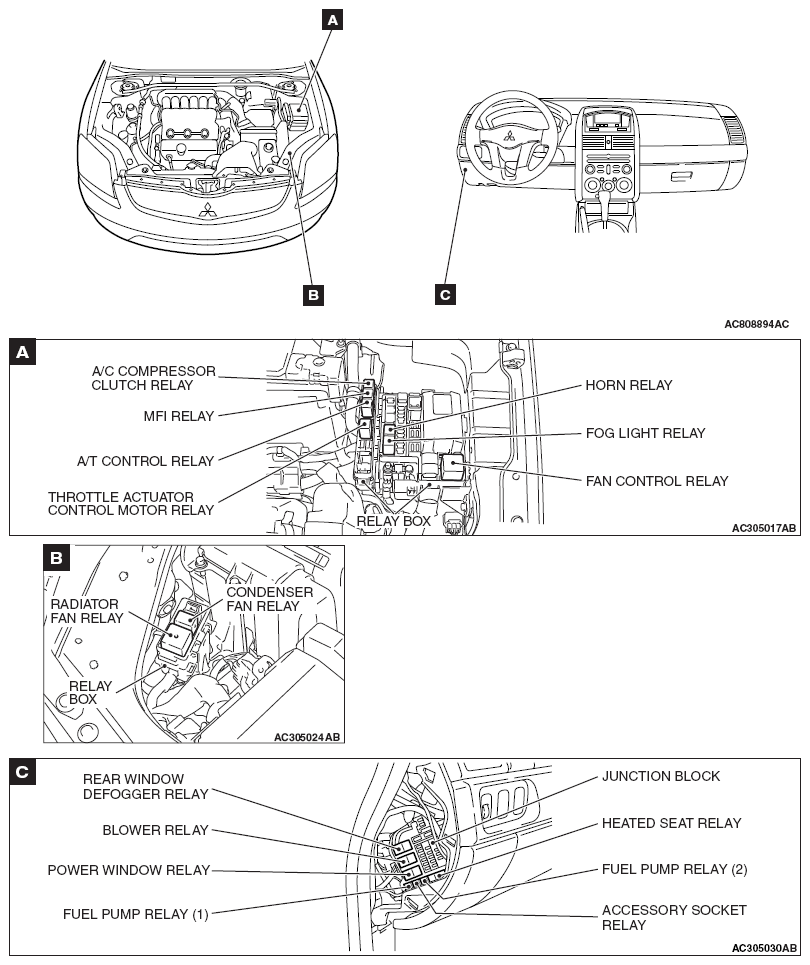

RELAY SYMBOLS REFERENCE CHART
| NAME | SYMBOL | NAME | SYMBOL |
|---|---|---|---|
| A/C compressor clutch relay | A | Fuel pump relay (2) | C |
| A/T control relay | A | Heated seat relay | C |
| Accessory socket relay | C | Horn relay | A |
| Blower relay | C | MFI relay | A |
| Condenser fan relay | B | Power window relay | C |
| Fan control relay | A | Radiator fan relay | B |
| Fog light relay | A | Rear window defogger relay | C |
| Fuel pump relay (1) | C | Throttle actuator control motor relay | A |
