Galant ES
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
OEM Component Locations
>>
Grounding
OEM Component Locations: Grounding
Fig 1: Locating Wiring Harness And Ground Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
1 to 16 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

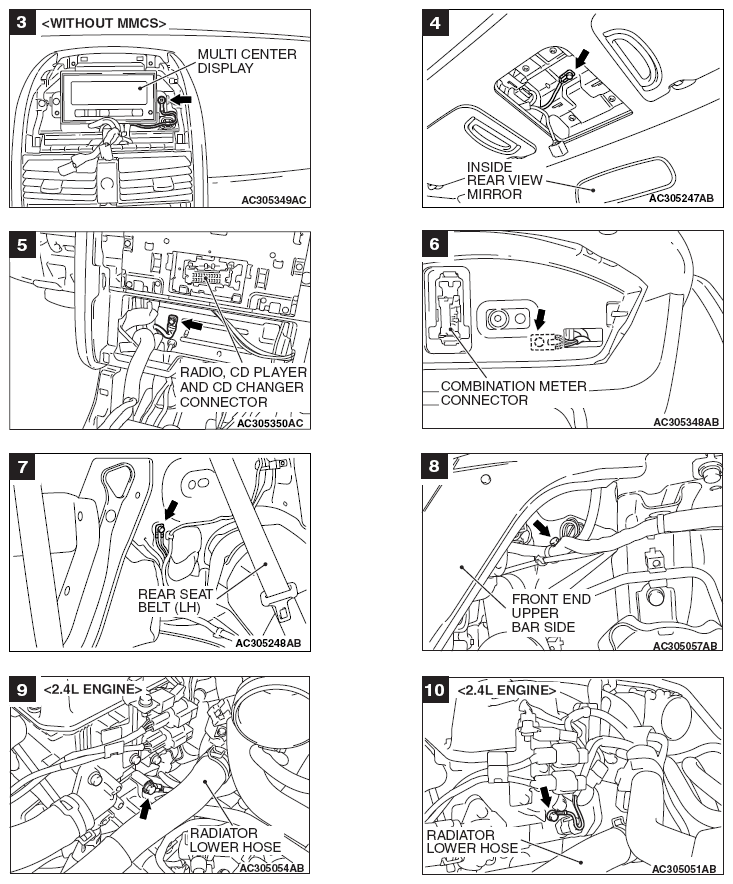

Fig 2: Locating Ground Points (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

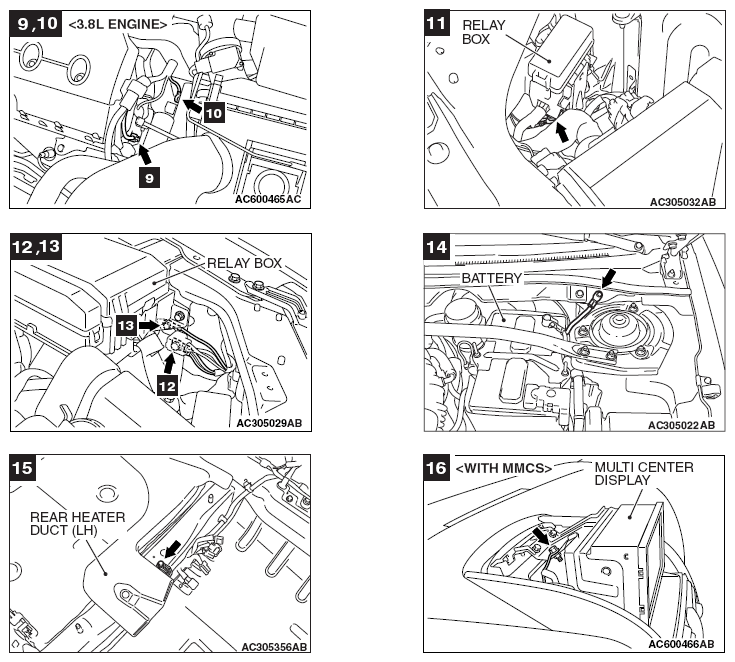

Fig 3: Locating Ground Points (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
