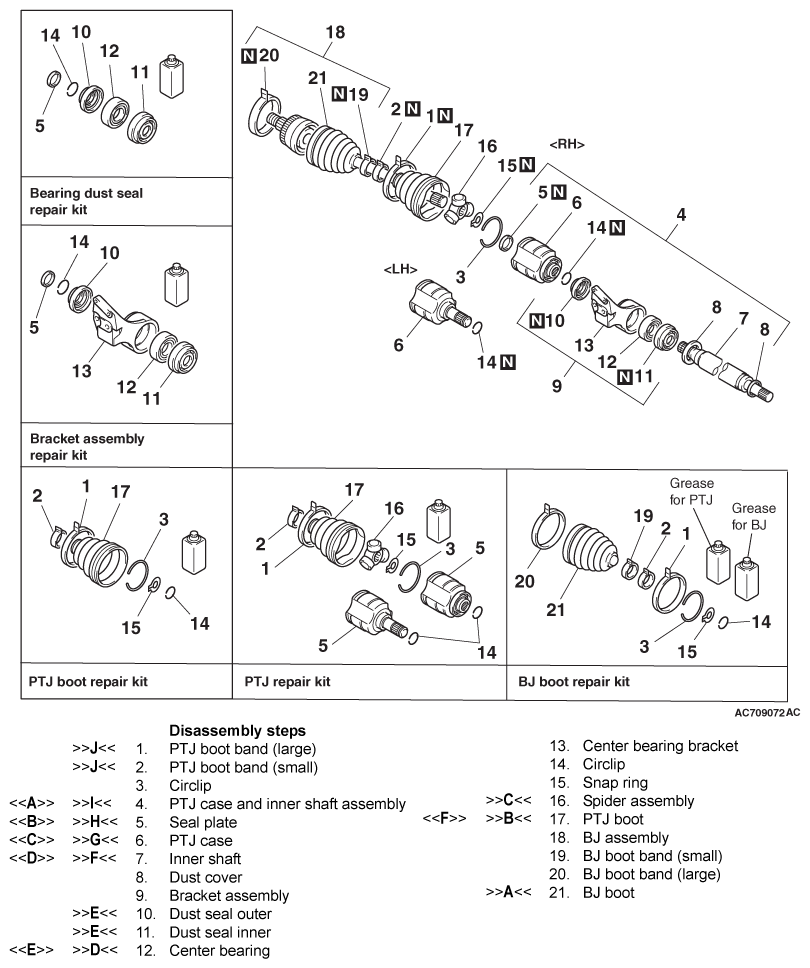

Disassembly And Assembly <3.8L>: Notes
CAUTION:
- Be careful not to damage the ABS rotor, which is attached to the BJ outer race during disassembly and reassembly.
- Never disassemble the BJ assembly except when replacing the BJ boot.
NOTE:
For BJ boot removal and installation, refer to BJ BOOT REPLACEMENT
.
Required Special Tools:
- MB990810: Side Bearing Puller
- MB990890: Rear Suspension Bushing Base
- MB990930: Installer Adapter
- MB990932: Installer Adapter
- MB990934: Installer Adapter
- MB990938: Installer bar (snap-in type)
- MB991172: Inner Shaft Installer Base
- MB991248: Inner Shaft Remover
- MD998369: Bearing Installer
