Removal And Installation: Notes

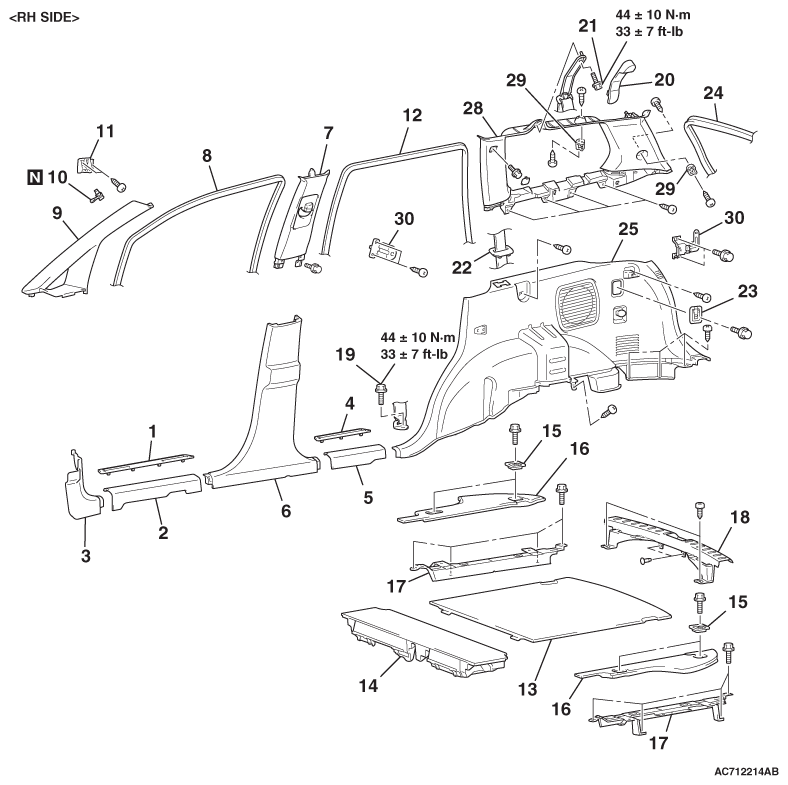

Fig 1: Trims Removal And Installation With Torque Specifications - RH
G06700300Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

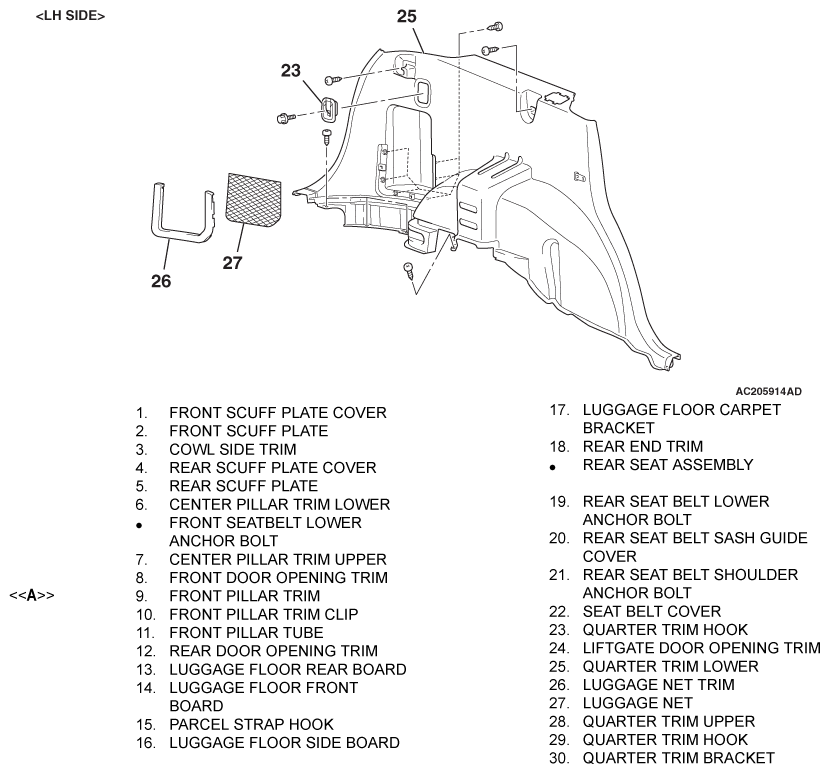

Fig 2: Identifying Trims Removal And Installation - LH
G06700301Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
