Removal And Installation: Notes

CAUTION:

For removal and installation of the passenger's side air bag module, always observe the service procedures described in GROUP 52B, Air Bag Module and Clock Spring.
Refer to SRS SERVICE PRECAUTIONS and Air bag Module and Clock Spring.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

BOLTS AND SCREWS REFERENCE CHART

Name	Symbol	Size (D x L) mm	Color	Shape
TAPPING SCREW	a	4 x 12	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	b	5 x 12	-
	c	5 x 12	BLACK
	d	5 x 16	-
	e	4 x 10	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	f	4 x 12	-
	g	5 x 16	-
	h	6 x 12	-
	i	5 x 12	BLACK	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	j	8x 15	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WASHER ASSEMBLY BOLT	k	6 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	l	6 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	m	6 x 25	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

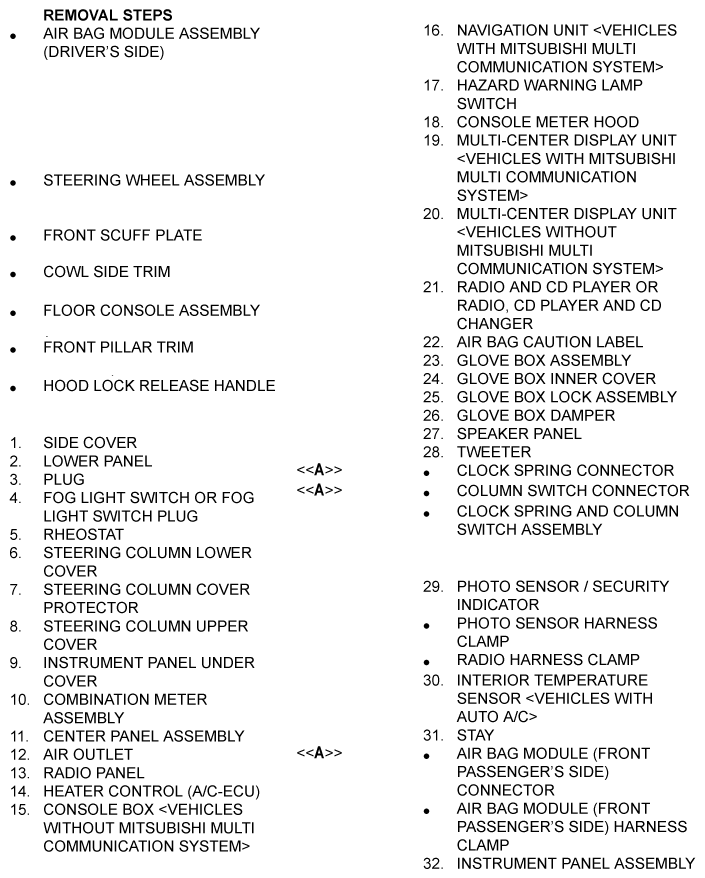

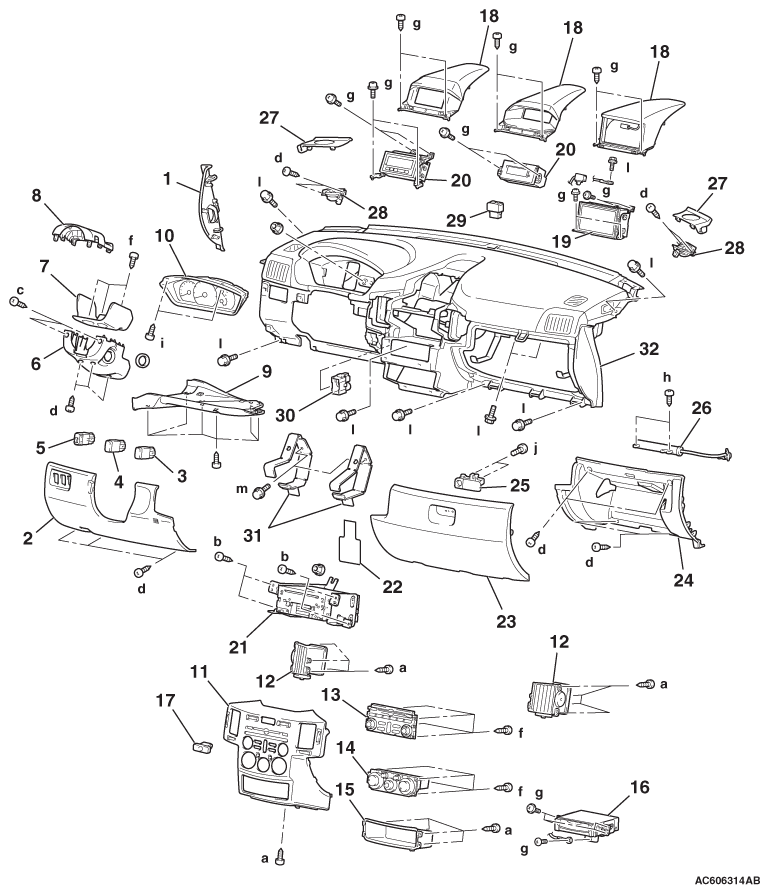

Fig 1: Exploded View Of Instrument Panel Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Instrument Panel Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
