Home >> Mitsubishi >> 2010 >> Endeavor SE, FWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Floor Console Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

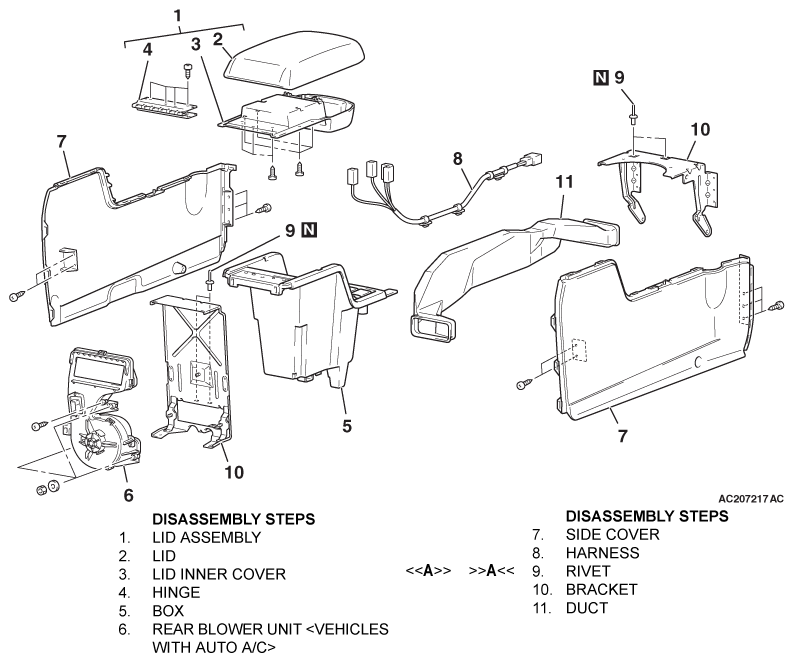

Fig 1: Identifying Floor Console Assembly Disassembly And Assembly

G06700297

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
