Home >> Mitsubishi >> 2010 >> Endeavor LS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Overhaul >> Timing Belt >> Removal And Installation >> Notes

Removal And Installation: Notes

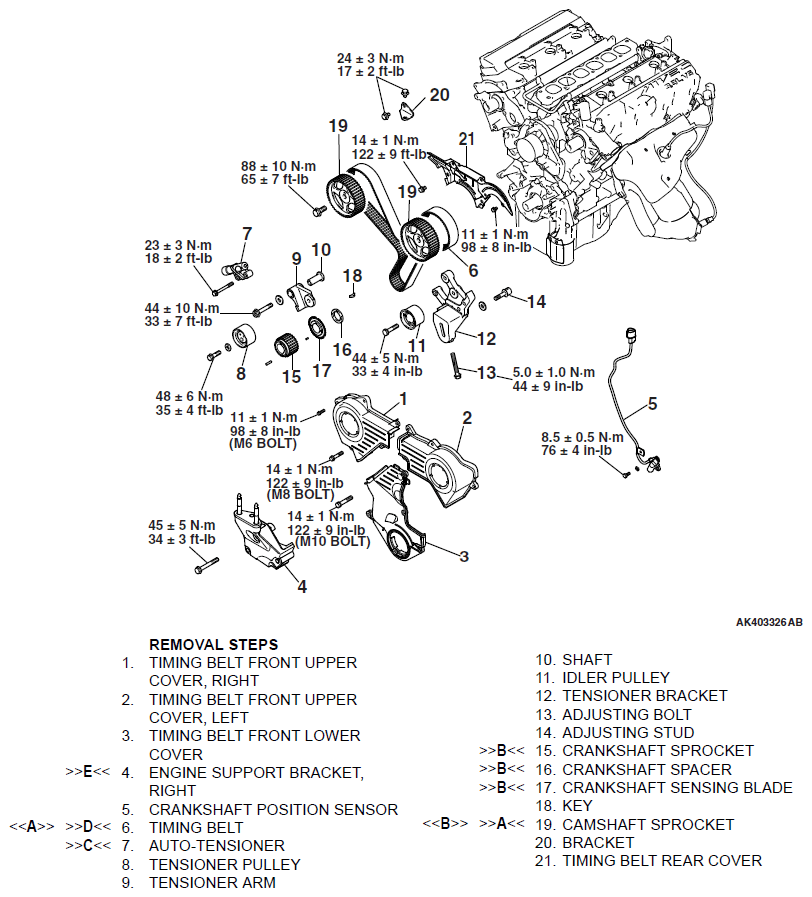

Fig 1: Timing Belt Replacement Components With Torque Specifications
G06693609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
