Removal And Installation: Notes

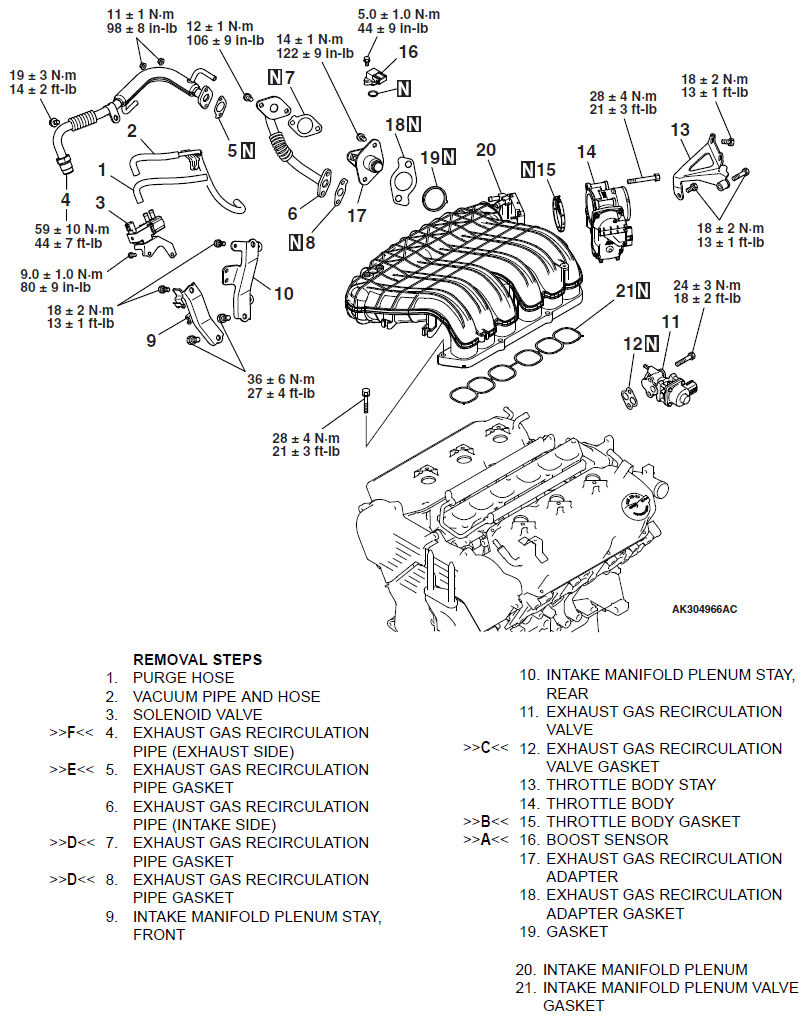

Fig 1: Intake Manifold Plenum And Throttle Body Assembly With Torque Specifications
G06693599Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
