Removal And Installation: Notes

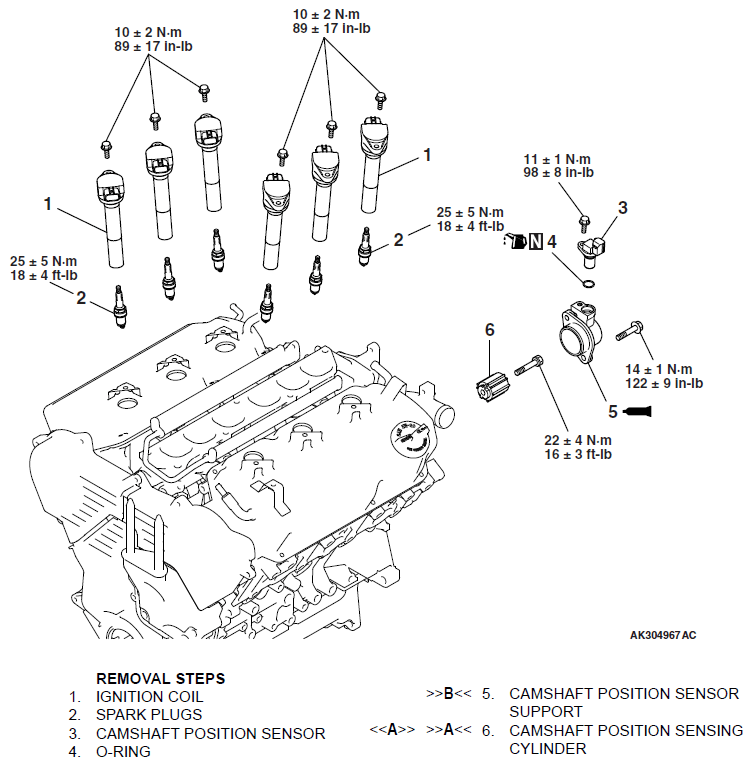

Fig 1: Ignition System Replacement Components With Torque Specifications
G06693605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
