Removal And Installation: Notes

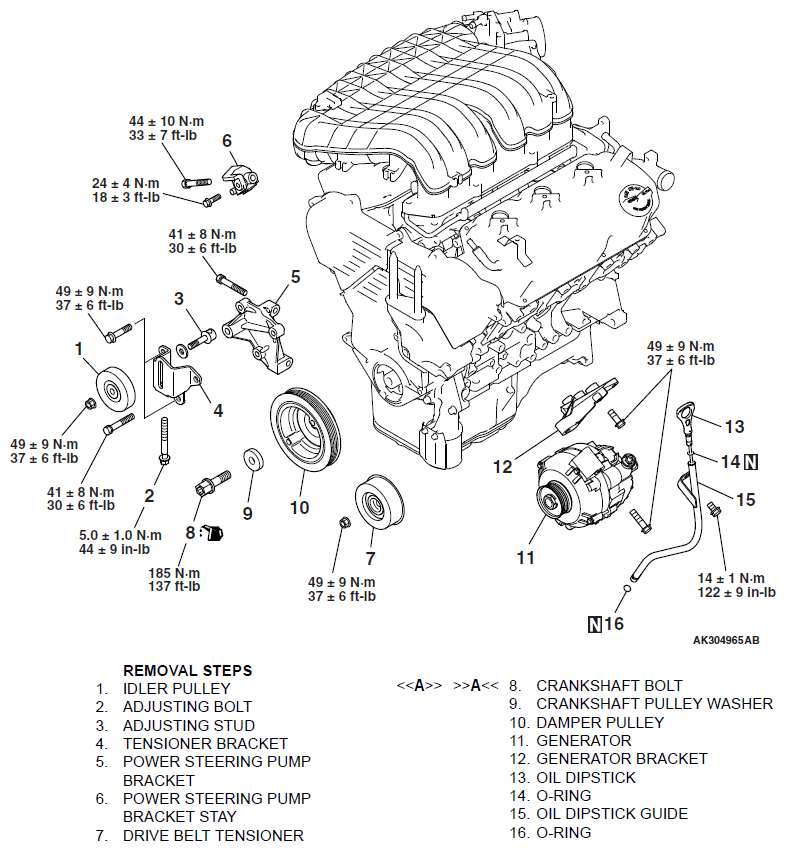

Fig 1: Generator And Drive Belt Replacement Components With Torque Specifications
G06693595Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
