Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

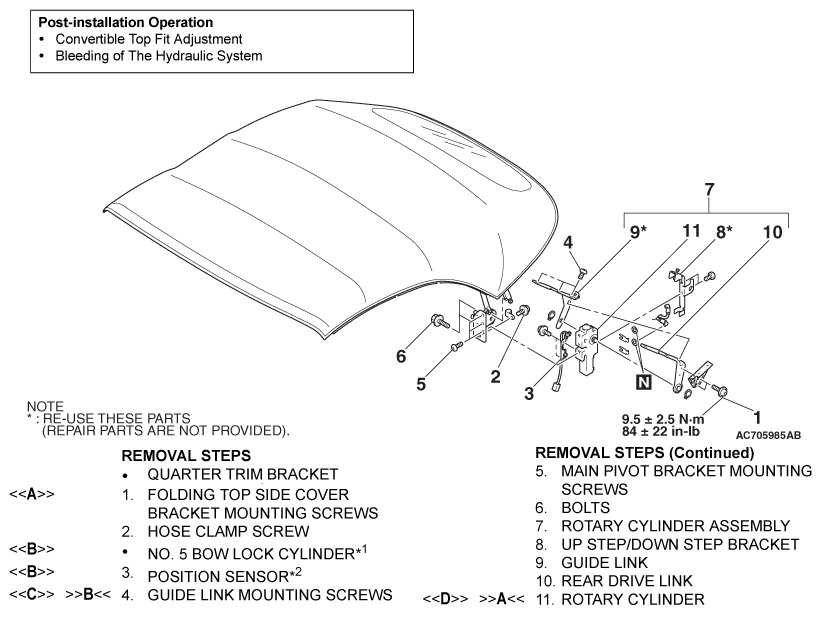

Fig 1: Rotary Cylinder Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: ^*1 : Do not remove the oil line of the No. 5 bow lock cylinder.

NOTE: ^*2 : Do not remove the wiring harness connector connection of the position sensor.
