Home >> Mitsubishi >> 2009 >> Outlander XLS, FWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Disassembly And Reassembly >> Overview

Disassembly And Reassembly: Overview

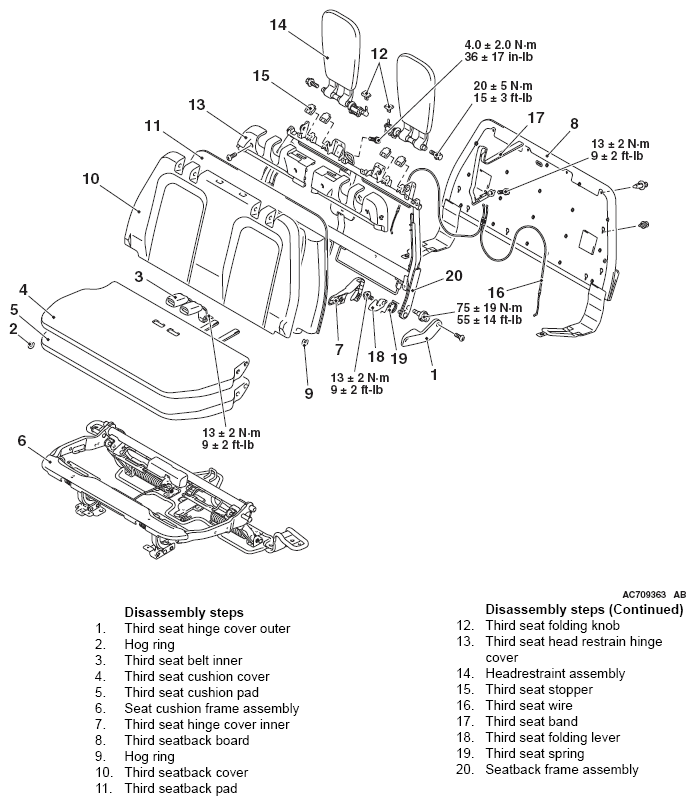

Fig 1: Exploded View Of Seat Assembly Components With Torque Specifications

G05433491

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
