OEM Component Locations: Sensor
SENSOR SYMBOLS REFERENCE CHART
| Name | Symbol | Name | Symbol |
|---|---|---|---|

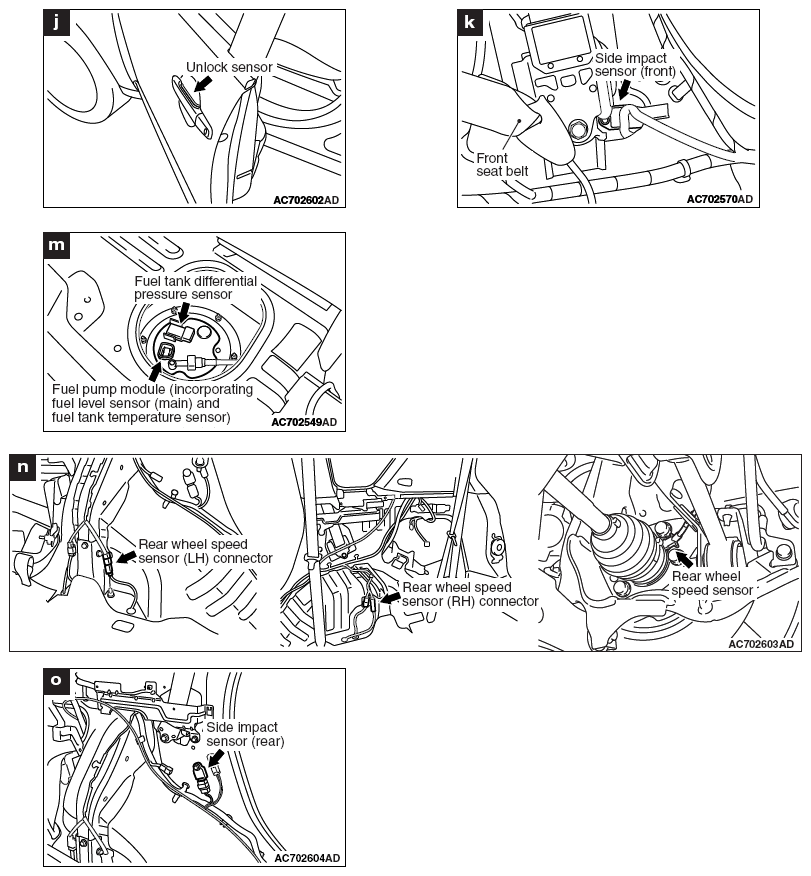

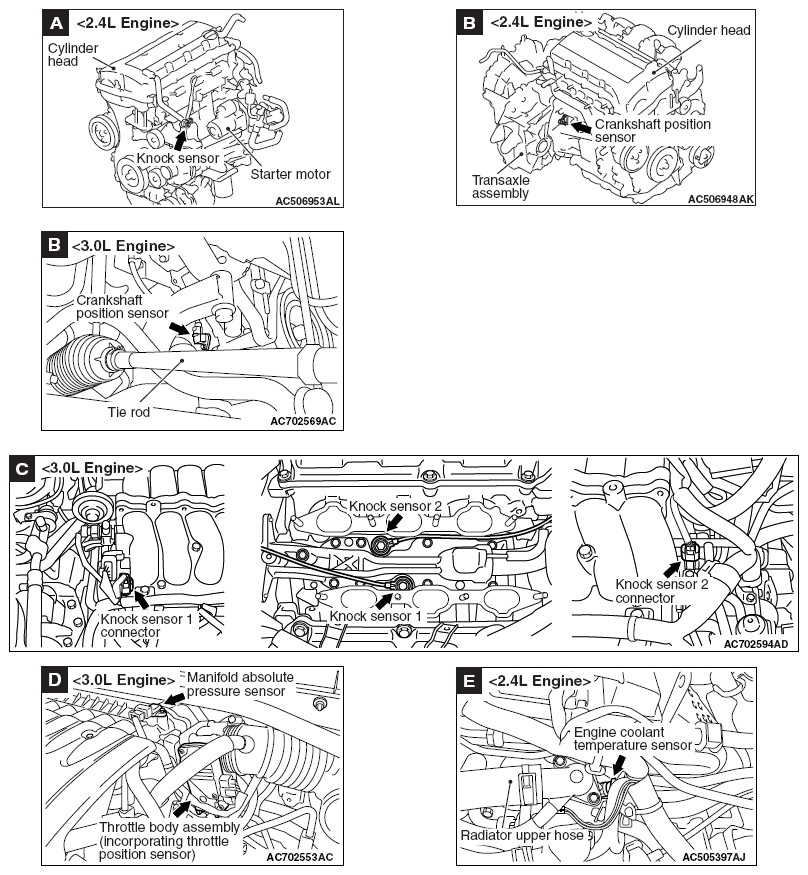

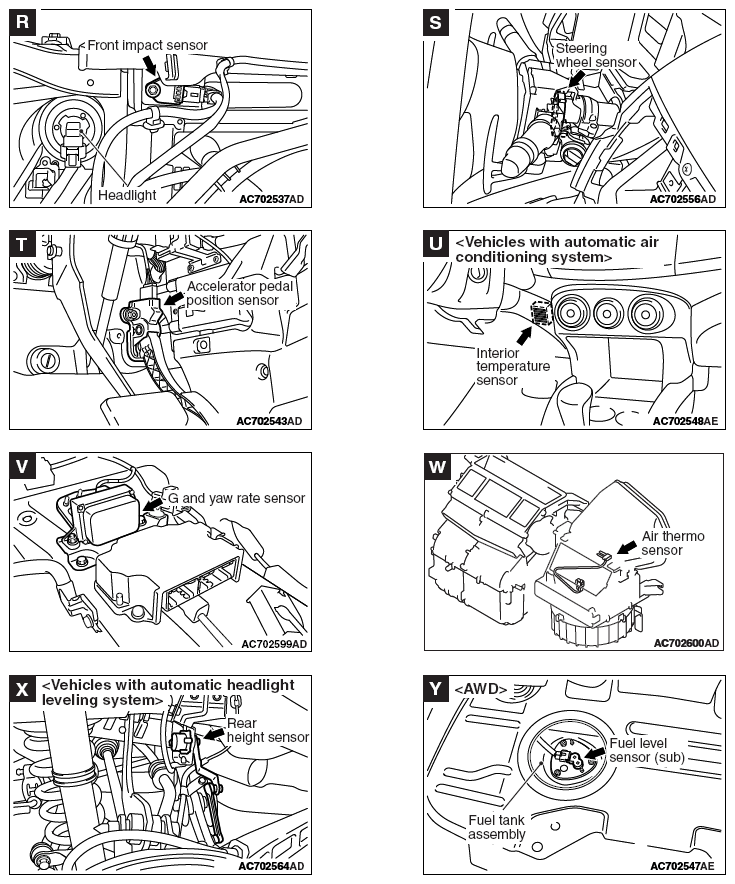

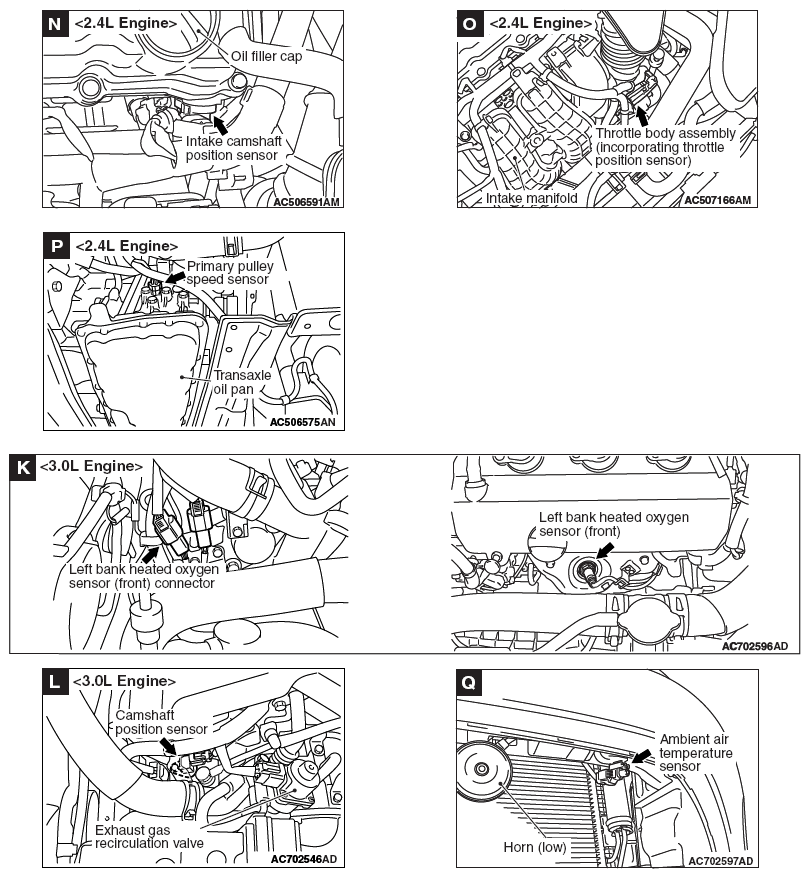

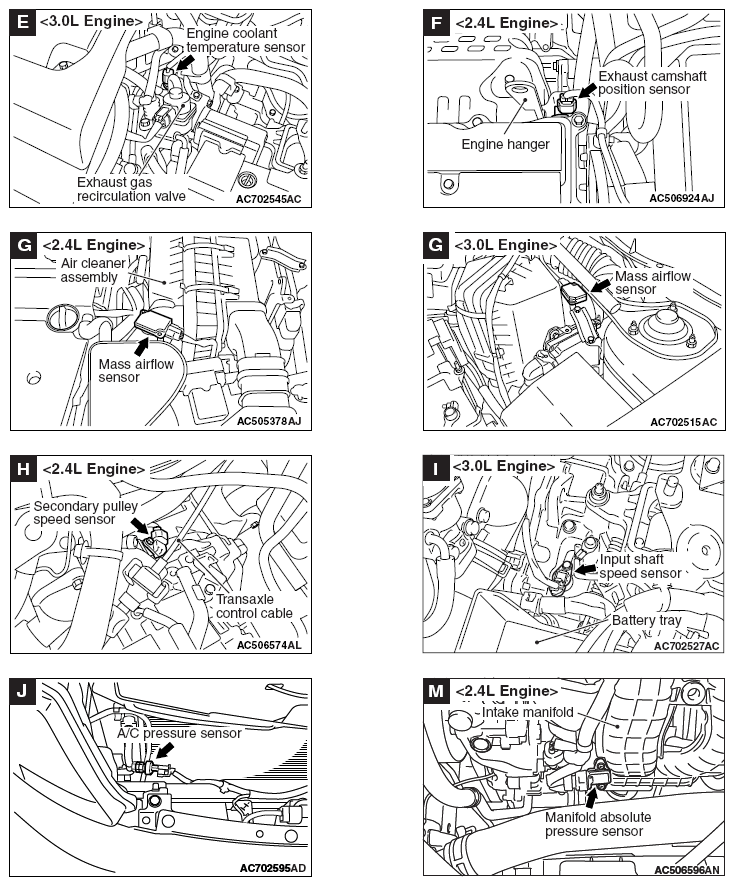

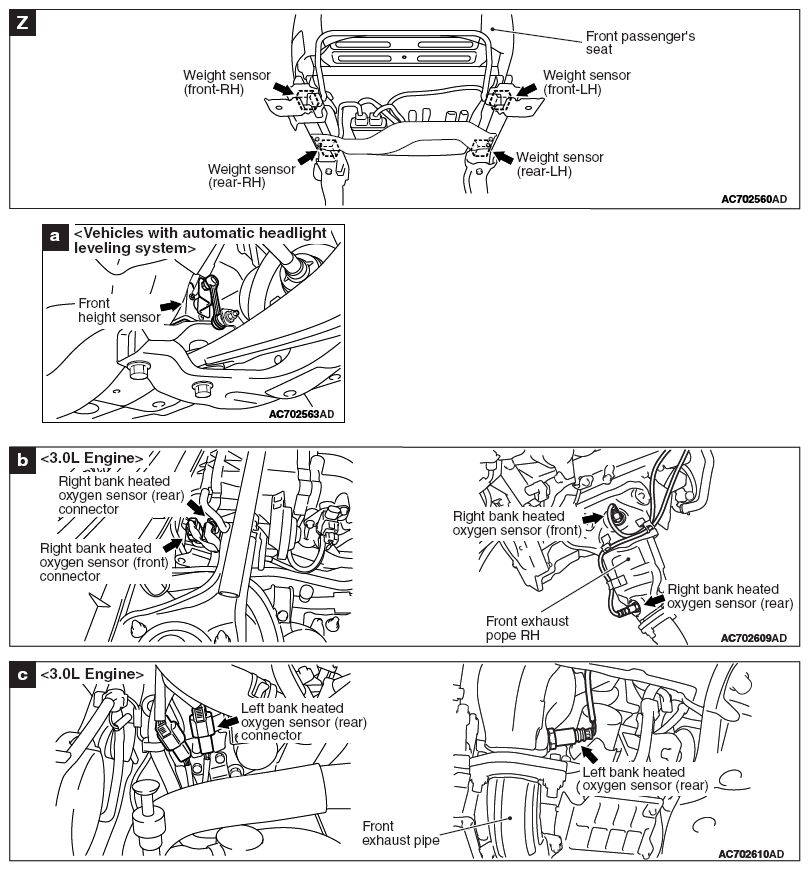

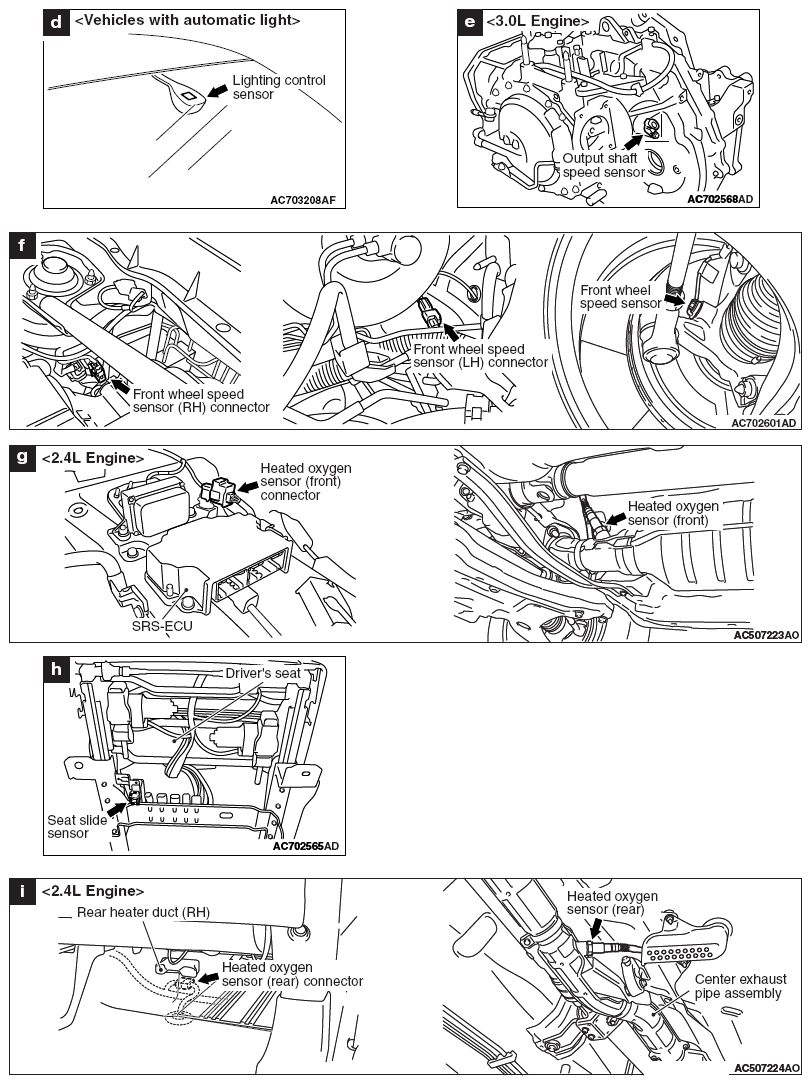

| A/C pressure sensor | J | Knock sensor 2 < 3.0L Engine > | C |
| Accelerator pedal position sensor | T | Left bank heated oxygen sensor (front) < 3.0L Engine > | K |
| Air thermo sensor | W | Left bank heated oxygen sensor (rear) < 3.0L Engine > | c |
| Ambient air temperature sensor | Q | Lighting control sensor < Vehicles with automatic light > | d |
| Camshaft position sensor < 3.0L Engine > | L | Manifold absolute pressure sensor < 2.4L Engine > | M |
| Crankshaft position sensor | B | Manifold absolute pressure sensor < 3.0L Engine > | D |
| Engine coolant temperature sensor | E | Mass airflow sensor | G |
| Exhaust camshaft position sensor < 2.4L Engine > | F | Output shaft speed sensor < 3.0L Engine > | e |
| Front height sensor < Vehicles with automatic headlight leveling system > | a | Primary pulley speed sensor < 2.4L Engine > | P |
| Front impact sensor | R | Rear height sensor < Vehicles with automatic headlight leveling system > | X |
| Front wheel speed sensor | f | Rear wheel speed sensor | n |
| Fuel level sensor (sub) < AWD > | Y | Right bank heated oxygen sensor (front) < 3.0L Engine > | b |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | m | Right bank heated oxygen sensor (rear) < 3.0L Engine > | b |
| Seat slide sensor | h | ||
| Fuel tank differential pressure sensor | m | Secondary pulley speed sensor < 2.4L Engine > | H |
| G and yaw rate sensor | V | Side impact sensor (front) | k |
| Heated oxygen sensor (front) < 2.4L Engine > | g | Side impact sensor (rear) | o |
| Heated oxygen sensor (rear) < 2.4L Engine > | i | Steering wheel sensor | S |
| Input shaft speed sensor < 3.0L Engine > | I | Throttle body assembly (incorporating throttle position sensor) < 2.4L Engine > | O |
| Intake camshaft position sensor < 2.4L Engine > | N | Throttle body assembly (incorporating throttle position sensor) < 3.0L Engine > | D |
| Interior temperature sensor < Vehicles with automatic air conditioning system > | U | Unlock sensor | j |
| Knock sensor < 2.4L Engine > | A | Weight sensor | Z |
| Knock sensor 1 < 3.0L Engine > | C |
NOTE:

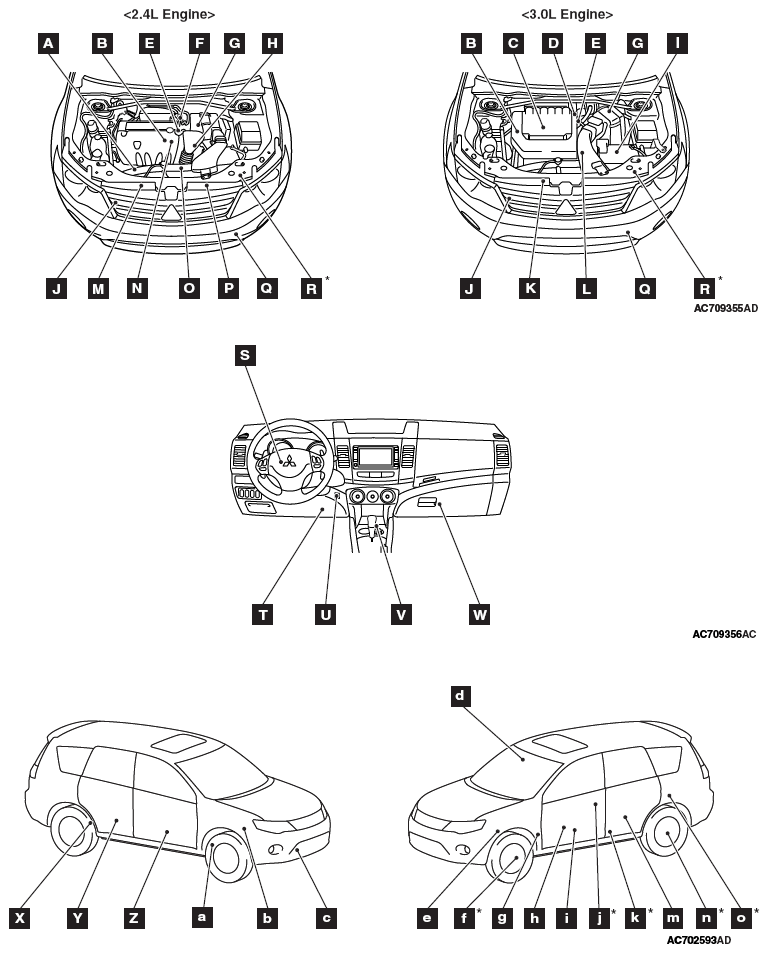

The * symbols indicate equipment at both sides.
