Home >> Mitsubishi >> 2009 >> Outlander XLS, FWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Generator Assembly >> Removal And Installation < 2.4L Engine > >> Notes

Removal And Installation < 2.4L Engine >: Notes

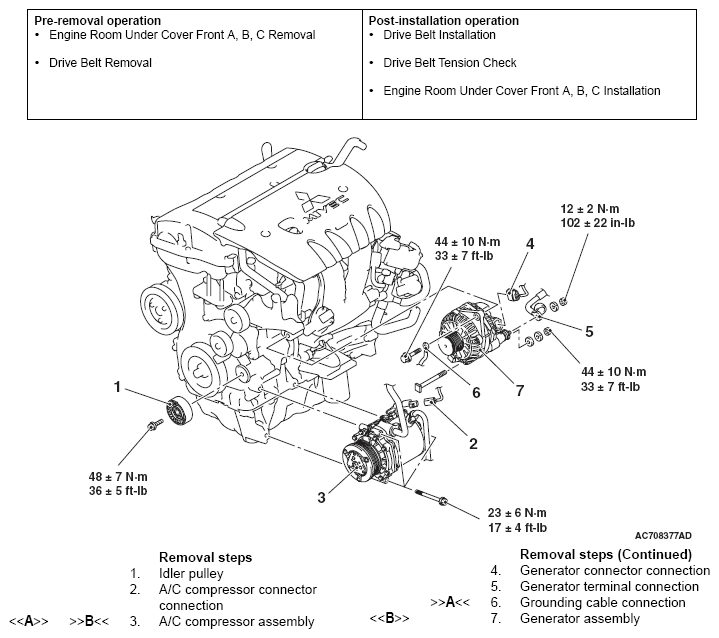

Fig 1: Generator Assembly Replacement Components With Torque Specifications - 2.4L Engine

G05431099

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
